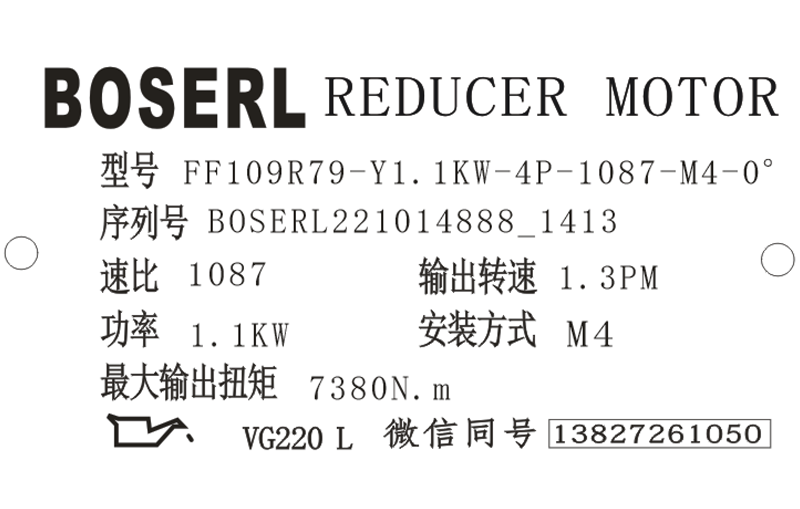

FF109R79減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FF109R79減速機選型樣本。

FF109R79-Y1.1KW-4P-1087-M4-0°

FF/R：系列代號

109/79：減速機規格代號

Y：電機

1.1KW：電機功率

4P：電機級數

1087：減速機傳動比

M4：減速機安裝位置

0°：接線盒位置

FF109R79減速機電機操作注意事項

請在安裝使用電機前，仔細閱讀我司說明書，請遵照本說明書的指示，安全、正確地安裝、操作和維護電機。所有對電機或輔助設備進行安裝、操作或維護的人員必須注意，不按照本說明書指示操作，可能出現產品損壞及人身安全事故。剎車電機減速機

請按照接線圖確實地進行接線，否則有可能引起火災或觸電。請勿強行彎曲、扯拉或夾住導線，否則有可能引起火災或觸電。

停電時，請切斷電源，否則回復供電后電動機會突然啟動，有可能致傷或造成設備破損。

減速電機請勿在銘牌或制造規格書中的規格值范圍外使用。否則有可能會導致觸電、受傷、損壞裝置等情況。

請勿將手指或物品插入減速電機的開口部分。否則有可能會導致觸電、受傷、火災、損壞裝置等情況。

運轉時請勿碰觸旋轉部(出力軸、散熱風扇)，否則有可能致傷。請勿使用損壞的減速電機，否則有可能會導致受傷、火災等情況。請勿拆下銘牌。

請勿對電機進行拆解或改造，否則有可能引起觸電或致傷。客戶對產品的改造不屬于本公司的保證范圍，本公司將不承擔責任。平行軸斜齒輪減速機

FF109R79減速機電機質量標準：

執行標準：GB755-2008，GB12350-2009，GB14711-2013。備注：BOSERL常規產品型號在設計時，按電動機功率及允許承載能力的強度計算;按照每天連續運轉八小時，載荷穩定不變的理想工況設定在實際使用時，現場工況(如:是否有反復啟動停止或頻繁正反轉，使用時間是否少于或多于八小時，沖擊載荷大小及特性)可能與理想工況相差甚遠，在選型時應予充分考慮;若有其它特殊要求，請反饋我司，將重新設計以滿足需求。齒輪減速電機

FF109R79減速電機型號：

YQFF107R77-Y0.12KW，YQFF107R77-Y0.18KW，YQFF107R77-Y0.25KW，YQFF107R77-Y0.37KW，YQFF107R77-Y0.55KW，YQFF107R77-Y0.75KW，YQFF107R77-Y1.1KW，YQFF107R77-Y1.5KW，YQFF107R77-Y100M4，YQFF107R77-Y112M4，YQFF107R77-Y2.2KW，YQFF107R77-Y3KW，YQFF107R77-Y4KW，YQFF107R77-Y63M4，YQFF107R77-Y71M4，YQFF107R77-Y80M4，YQFF107R77-Y90M4，YQFF107RF77-Y100M4，YQFF107RF77-Y112M4，YQFF107RF77-Y63M4，YQFF107RF77-Y71M4，YQFF107RF77-Y80M4，YQFF107RF77-Y90M4，YQFF107RF77-YB100L4，YQFF107RF77-YB112M4，YQFF107RF77-YB63M4，YQFF107RF77-YB71M4，YQFF107RF77-YB80M4，YQFF107RF77-YB90S4，YQFF107RF77-YDP100L4，YQFF107RF77-YDP112M4，YQFF107RF77-YDP63M4，YQFF107RF77-YDP71M4，YQFF107RF77-YDP80M4，YQFF107RF77-YDP90S4，YQFF107RF77-YE100L4，YQFF107RF77-YE112M4，YQFF107RF77-YE63M4，YQFF107RF77-YE71M4，YQFF107RF77-YE80M4，YQFF107RF77-YE90S4，YQFF107RF77-YEJ100L4，YQFF107RF77-YEJ112M4，YQFF107RF77-YEJ63M4，YQFF107RF77-YEJ71M4，YQFF107RF77-YEJ80M4，YQFF107RF77-YEJ90S4，YQFF107RF77-YEJB100L4，YQFF107RF77-YEJB112M4，YQFF107RF77-YEJB63M4，YQFF107RF77-YEJB71M4，YQFF107RF77-YEJB80M4，YQFF107RF77-YEJB90S4，YQFF107RF77-YP100L4，YQFF107RF77-YP112M4，YQFF107RF77-YP63M4，YQFF107RF77-YP71M4，YQFF107RF77-YP80M4，YQFF107RF77-YP90S4，YQFF107RF77-YPB100L4，YQFF107RF77-YPB112M4，YQFF107RF77-YPB63M4，YQFF107RF77-YPB71M4，YQFF107RF77-YPB80M4，YQFF107RF77-YPB90S4，YQFF107RF77-YPE100L4，YQFF107RF77-YPE112M4，YQFF107RF77-YPE63M4，YQFF107RF77-YPE71M4，YQFF107RF77-YPE80M4，YQFF107RF77-YPE90S4，YQFF107RF77-YS100L4，YQFF107RF77-YS112M4，YQFF107RF77-YS63M4，YQFF107RF77-YS71M4，YQFF107RF77-YS80M4，YQFF107RF77-YS90S4，YQFF107RF77-YVB100L4，YQFF107RF77-YVB112M4，YQFF107RF77-YVB63M4，YQFF107RF77-YVB71M4，YQFF107RF77-YVB80M4，YQFF107RF77-YVB90S4，YQFF107RF77-YVP100L4，YQFF107RF77-YVP112M4，YQFF107RF77-YVP63M4，YQFF107RF77-YVP71M4，YQFF107RF77-YVP80M4，YQFF107RF77-YVP90S4，YQFF107RF77-YVPEJ100L4，YQFF107RF77-YVPEJ112M4，YQFF107RF77-YVPEJ63M4，YQFF107RF77-YVPEJ71M4，YQFF107RF77-YVPEJ80M4，YQFF107RF77-YVPEJ90S4，WFF107R77-Y0.12KW，WFF107R77-Y0.18KW，WFF107R77-Y0.25KW，WFF107R77-Y0.37KW，WFF107R77-Y0.55KW，WFF107R77-Y0.75KW，WFF107R77-Y1.1KW，WFF107R77-Y1.5KW，WFF107R77-Y100M4，WFF107R77-Y112M4，WFF107R77-Y2.2KW，WFF107R77-Y3KW，WFF107R77-Y4KW，WFF107R77-Y63M4，WFF107R77-Y71M4，WFF107R77-Y80M4，WFF107R77-Y90M4，WFF107RF77-Y100M4，WFF107RF77-Y112M4，WFF107RF77-Y63M4，WFF107RF77-Y71M4，WFF107RF77-Y80M4，WFF107RF77-Y90M4，WFF107RF77-YB100L4，WFF107RF77-YB112M4，WFF107RF77-YB63M4，WFF107RF77-YB71M4，WFF107RF77-YB80M4，WFF107RF77-YB90S4，WFF107RF77-YDP100L4，WFF107RF77-YDP112M4，WFF107RF77-YDP63M4，WFF107RF77-YDP71M4，WFF107RF77-YDP80M4，WFF107RF77-YDP90S4，WFF107RF77-YE100L4，WFF107RF77-YE112M4，WFF107RF77-YE63M4，WFF107RF77-YE71M4，WFF107RF77-YE80M4，WFF107RF77-YE90S4，WFF107RF77-YEJ100L4，WFF107RF77-YEJ112M4，WFF107RF77-YEJ63M4，WFF107RF77-YEJ71M4，WFF107RF77-YEJ80M4，WFF107RF77-YEJ90S4，WFF107RF77-YEJB100L4，WFF107RF77-YEJB112M4，WFF107RF77-YEJB63M4，WFF107RF77-YEJB71M4，WFF107RF77-YEJB80M4，WFF107RF77-YEJB90S4，WFF107RF77-YP100L4，WFF107RF77-YP112M4，WFF107RF77-YP63M4，WFF107RF77-YP71M4，WFF107RF77-YP80M4，WFF107RF77-YP90S4，WFF107RF77-YPB100L4，WFF107RF77-YPB112M4，WFF107RF77-YPB63M4，WFF107RF77-YPB71M4，WFF107RF77-YPB80M4，WFF107RF77-YPB90S4，WFF107RF77-YPE100L4，WFF107RF77-YPE112M4，WFF107RF77-YPE63M4，WFF107RF77-YPE71M4，WFF107RF77-YPE80M4，WFF107RF77-YPE90S4，WFF107RF77-YS100L4，WFF107RF77-YS112M4，WFF107RF77-YS63M4，WFF107RF77-YS71M4，WFF107RF77-YS80M4，WFF107RF77-YS90S4，WFF107RF77-YVB100L4，WFF107RF77-YVB112M4，WFF107RF77-YVB63M4，WFF107RF77-YVB71M4，WFF107RF77-YVB80M4，WFF107RF77-YVB90S4，WFF107RF77-YVP100L4，WFF107RF77-YVP112M4，WFF107RF77-YVP63M4，WFF107RF77-YVP71M4，WFF107RF77-YVP80M4，WFF107RF77-YVP90S4，WFF107RF77-YVPEJ100L4，WFF107RF77-YVPEJ112M4，WFF107RF77-YVPEJ63M4，WFF107RF77-YVPEJ71M4，WFF107RF77-YVPEJ80M4，WFF107RF77-YVPEJ90S4，XDFF107R77-Y0.12KW，XDFF107R77-Y0.18KW，XDFF107R77-Y0.25KW，XDFF107R77-Y0.37KW，XDFF107R77-Y0.55KW，XDFF107R77-Y0.75KW，XDFF107R77-Y1.1KW，XDFF107R77-Y1.5KW，XDFF107R77-Y100M4，XDFF107R77-Y112M4，XDFF107R77-Y2.2KW，XDFF107R77-Y3KW，XDFF107R77-Y4KW，XDFF107R77-Y63M4，XDFF107R77-Y71M4，XDFF107R77-Y80M4，XDFF107R77-Y90M4，XDFF107RF77-Y100M4，XDFF107RF77-Y112M4，XDFF107RF77-Y63M4，XDFF107RF77-Y71M4，XDFF107RF77-Y80M4，XDFF107RF77-Y90M4，XDFF107RF77-YB100L4，XDFF107RF77-YB112M4，XDFF107RF77-YB63M4，XDFF107RF77-YB71M4，XDFF107RF77-YB80M4，XDFF107RF77-YB90S4，XDFF107RF77-YDP100L4，XDFF107RF77-YDP112M4，XDFF107RF77-YDP63M4，XDFF107RF77-YDP71M4，XDFF107RF77-YDP80M4，XDFF107RF77-YDP90S4，XDFF107RF77-YE100L4，XDFF107RF77-YE112M4，XDFF107RF77-YE63M4，XDFF107RF77-YE71M4，XDFF107RF77-YE80M4，XDFF107RF77-YE90S4，XDFF107RF77-YEJ100L4，XDFF107RF77-YEJ112M4，XDFF107RF77-YEJ63M4，XDFF107RF77-YEJ71M4，XDFF107RF77-YEJ80M4，XDFF107RF77-YEJ90S4，XDFF107RF77-YEJB100L4，XDFF107RF77-YEJB112M4，XDFF107RF77-YEJB63M4，XDFF107RF77-YEJB71M4，XDFF107RF77-YEJB80M4，XDFF107RF77-YEJB90S4，XDFF107RF77-YP100L4，XDFF107RF77-YP112M4，XDFF107RF77-YP63M4，XDFF107RF77-YP71M4，XDFF107RF77-YP80M4，XDFF107RF77-YP90S4，XDFF107RF77-YPB100L4，XDFF107RF77-YPB112M4，XDFF107RF77-YPB63M4，XDFF107RF77-YPB71M4，XDFF107RF77-YPB80M4，XDFF107RF77-YPB90S4，XDFF107RF77-YPE100L4，XDFF107RF77-YPE112M4，XDFF107RF77-YPE63M4，XDFF107RF77-YPE71M4，XDFF107RF77-YPE80M4，XDFF107RF77-YPE90S4，XDFF107RF77-YS100L4，XDFF107RF77-YS112M4，XDFF107RF77-YS63M4，XDFF107RF77-YS71M4，XDFF107RF77-YS80M4，XDFF107RF77-YS90S4，XDFF107RF77-YVB100L4，XDFF107RF77-YVB112M4，XDFF107RF77-YVB63M4，XDFF107RF77-YVB71M4，XDFF107RF77-YVB80M4，XDFF107RF77-YVB90S4，XDFF107RF77-YVP100L4，XDFF107RF77-YVP112M4，XDFF107RF77-YVP63M4，XDFF107RF77-YVP71M4，XDFF107RF77-YVP80M4，XDFF107RF77-YVP90S4，XDFF107RF77-YVPEJ100L4，XDFF107RF77-YVPEJ112M4，XDFF107RF77-YVPEJ63M4，XDFF107RF77-YVPEJ71M4，XDFF107RF77-YVPEJ80M4，XDFF107RF77-YVPEJ90S4，JCFF107R77-Y0.12KW，JCFF107R77-Y0.18KW，JCFF107R77-Y0.25KW，JCFF107R77-Y0.37KW，JCFF107R77-Y0.55KW，JCFF107R77-Y0.75KW，JCFF107R77-Y1.1KW，JCFF107R77-Y1.5KW，JCFF107R77-Y100M4，JCFF107R77-Y112M4，JCFF107R77-Y2.2KW，JCFF107R77-Y3KW，JCFF107R77-Y4KW，JCFF107R77-Y63M4，JCFF107R77-Y71M4，JCFF107R77-Y80M4，JCFF107R77-Y90M4，JCFF107RF77-Y100M4，JCFF107RF77-Y112M4，JCFF107RF77-Y63M4，JCFF107RF77-Y71M4，JCFF107RF77-Y80M4，JCFF107RF77-Y90M4，JCFF107RF77-YB100L4，JCFF107RF77-YB112M4，JCFF107RF77-YB63M4，JCFF107RF77-YB71M4，JCFF107RF77-YB80M4，JCFF107RF77-YB90S4，JCFF107RF77-YDP100L4，JCFF107RF77-YDP112M4，JCFF107RF77-YDP63M4，JCFF107RF77-YDP71M4，JCFF107RF77-YDP80M4，JCFF107RF77-YDP90S4，JCFF107RF77-YE100L4，JCFF107RF77-YE112M4，JCFF107RF77-YE63M4，JCFF107RF77-YE71M4，JCFF107RF77-YE80M4，JCFF107RF77-YE90S4，JCFF107RF77-YEJ100L4，JCFF107RF77-YEJ112M4，JCFF107RF77-YEJ63M4，JCFF107RF77-YEJ71M4，JCFF107RF77-YEJ80M4，JCFF107RF77-YEJ90S4，JCFF107RF77-YEJB100L4，JCFF107RF77-YEJB112M4，JCFF107RF77-YEJB63M4，JCFF107RF77-YEJB71M4，JCFF107RF77-YEJB80M4，JCFF107RF77-YEJB90S4，JCFF107RF77-YP100L4，JCFF107RF77-YP112M4，JCFF107RF77-YP63M4，JCFF107RF77-YP71M4，JCFF107RF77-YP80M4，JCFF107RF77-YP90S4，JCFF107RF77-YPB100L4，JCFF107RF77-YPB112M4，JCFF107RF77-YPB63M4，JCFF107RF77-YPB71M4，JCFF107RF77-YPB80M4，JCFF107RF77-YPB90S4，JCFF107RF77-YPE100L4，JCFF107RF77-YPE112M4，JCFF107RF77-YPE63M4，JCFF107RF77-YPE71M4，JCFF107RF77-YPE80M4，JCFF107RF77-YPE90S4，JCFF107RF77-YS100L4，JCFF107RF77-YS112M4，JCFF107RF77-YS63M4，JCFF107RF77-YS71M4，JCFF107RF77-YS80M4，JCFF107RF77-YS90S4，JCFF107RF77-YVB100L4，JCFF107RF77-YVB112M4，JCFF107RF77-YVB63M4，JCFF107RF77-YVB71M4，JCFF107RF77-YVB80M4，JCFF107RF77-YVB90S4，JCFF107RF77-YVP100L4，JCFF107RF77-YVP112M4，JCFF107RF77-YVP63M4，JCFF107RF77-YVP71M4，JCFF107RF77-YVP80M4，JCFF107RF77-YVP90S4，JCFF107RF77-YVPEJ100L4，JCFF107RF77-YVPEJ112M4，JCFF107RF77-YVPEJ63M4，JCFF107RF77-YVPEJ71M4，JCFF107RF77-YVPEJ80M4，JCFF107RF77-YVPEJ90S4，NFF107R77-Y0.12KW，NFF107R77-Y0.18KW，NFF107R77-Y0.25KW，NFF107R77-Y0.37KW，NFF107R77-Y0.55KW，NFF107R77-Y0.75KW，NFF107R77-Y1.1KW，NFF107R77-Y1.5KW，NFF107R77-Y100M4，NFF107R77-Y112M4，NFF107R77-Y2.2KW，NFF107R77-Y3KW，NFF107R77-Y4KW，NFF107R77-Y63M4，NFF107R77-Y71M4，NFF107R77-Y80M4，NFF107R77-Y90M4，NFF107RF77-Y100M4，NFF107RF77-Y112M4，NFF107RF77-Y63M4，NFF107RF77-Y71M4，NFF107RF77-Y80M4，NFF107RF77-Y90M4，NFF107RF77-YB100L4，NFF107RF77-YB112M4，NFF107RF77-YB63M4，NFF107RF77-YB71M4，NFF107RF77-YB80M4，NFF107RF77-YB90S4，NFF107RF77-YDP100L4，NFF107RF77-YDP112M4，NFF107RF77-YDP63M4，NFF107RF77-YDP71M4，NFF107RF77-YDP80M4，NFF107RF77-YDP90S4，NFF107RF77-YE100L4，NFF107RF77-YE112M4，NFF107RF77-YE63M4，NFF107RF77-YE71M4，NFF107RF77-YE80M4，NFF107RF77-YE90S4，NFF107RF77-YEJ100L4，NFF107RF77-YEJ112M4，NFF107RF77-YEJ63M4，NFF107RF77-YEJ71M4，NFF107RF77-YEJ80M4，NFF107RF77-YEJ90S4，NFF107RF77-YEJB100L4，NFF107RF77-YEJB112M4，NFF107RF77-YEJB63M4，NFF107RF77-YEJB71M4，NFF107RF77-YEJB80M4，NFF107RF77-YEJB90S4，NFF107RF77-YP100L4，NFF107RF77-YP112M4，NFF107RF77-YP63M4，NFF107RF77-YP71M4，NFF107RF77-YP80M4，NFF107RF77-YP90S4，NFF107RF77-YPB100L4，NFF107RF77-YPB112M4，NFF107RF77-YPB63M4，NFF107RF77-YPB71M4，NFF107RF77-YPB80M4，NFF107RF77-YPB90S4，NFF107RF77-YPE100L4，NFF107RF77-YPE112M4，NFF107RF77-YPE63M4，NFF107RF77-YPE71M4，NFF107RF77-YPE80M4，NFF107RF77-YPE90S4，NFF107RF77-YS100L4，NFF107RF77-YS112M4，NFF107RF77-YS63M4，NFF107RF77-YS71M4，NFF107RF77-YS80M4，NFF107RF77-YS90S4，NFF107RF77-YVB100L4，NFF107RF77-YVB112M4，NFF107RF77-YVB63M4，NFF107RF77-YVB71M4，NFF107RF77-YVB80M4，NFF107RF77-YVB90S4，NFF107RF77-YVP100L4，NFF107RF77-YVP112M4，NFF107RF77-YVP63M4，NFF107RF77-YVP71M4，NFF107RF77-YVP80M4，NFF107RF77-YVP90S4，NFF107RF77-YVPEJ100L4，NFF107RF77-YVPEJ112M4，NFF107RF77-YVPEJ63M4，NFF107RF77-YVPEJ71M4，NFF107RF77-YVPEJ80M4，NFF107RF77-YVPEJ90S4，SFF107R77-Y0.12KW，SFF107R77-Y0.18KW，SFF107R77-Y0.25KW，SFF107R77-Y0.37KW，SFF107R77-Y0.55KW，SFF107R77-Y0.75KW，SFF107R77-Y1.1KW，SFF107R77-Y1.5KW，SFF107R77-Y100M4，SFF107R77-Y112M4，SFF107R77-Y2.2KW，SFF107R77-Y3KW，SFF107R77-Y4KW，SFF107R77-Y63M4，SFF107R77-Y71M4，SFF107R77-Y80M4，SFF107R77-Y90M4，SFF107RF77-Y100M4，SFF107RF77-Y112M4，SFF107RF77-Y63M4，SFF107RF77-Y71M4，SFF107RF77-Y80M4，SFF107RF77-Y90M4，SFF107RF77-YB100L4，SFF107RF77-YB112M4，SFF107RF77-YB63M4，SFF107RF77-YB71M4，SFF107RF77-YB80M4，SFF107RF77-YB90S4，SFF107RF77-YDP100L4，SFF107RF77-YDP112M4，SFF107RF77-YDP63M4，SFF107RF77-YDP71M4，SFF107RF77-YDP80M4，SFF107RF77-YDP90S4，SFF107RF77-YE100L4，SFF107RF77-YE112M4，SFF107RF77-YE63M4，SFF107RF77-YE71M4，SFF107RF77-YE80M4，SFF107RF77-YE90S4，SFF107RF77-YEJ100L4，SFF107RF77-YEJ112M4，SFF107RF77-YEJ63M4，SFF107RF77-YEJ71M4，SFF107RF77-YEJ80M4，SFF107RF77-YEJ90S4，SFF107RF77-YEJB100L4，SFF107RF77-YEJB112M4，SFF107RF77-YEJB63M4，SFF107RF77-YEJB71M4，SFF107RF77-YEJB80M4，SFF107RF77-YEJB90S4，SFF107RF77-YP100L4，SFF107RF77-YP112M4，SFF107RF77-YP63M4，SFF107RF77-YP71M4，SFF107RF77-YP80M4，SFF107RF77-YP90S4，SFF107RF77-YPB100L4，SFF107RF77-YPB112M4，SFF107RF77-YPB63M4，SFF107RF77-YPB71M4，SFF107RF77-YPB80M4，SFF107RF77-YPB90S4，SFF107RF77-YPE100L4，SFF107RF77-YPE112M4，SFF107RF77-YPE63M4，SFF107RF77-YPE71M4，SFF107RF77-YPE80M4，SFF107RF77-YPE90S4，SFF107RF77-YS100L4，SFF107RF77-YS112M4，SFF107RF77-YS63M4，SFF107RF77-YS71M4，SFF107RF77-YS80M4，SFF107RF77-YS90S4，SFF107RF77-YVB100L4，SFF107RF77-YVB112M4，SFF107RF77-YVB63M4，SFF107RF77-YVB71M4，SFF107RF77-YVB80M4，SFF107RF77-YVB90S4，SFF107RF77-YVP100L4，SFF107RF77-YVP112M4，SFF107RF77-YVP63M4，SFF107RF77-YVP71M4，SFF107RF77-YVP80M4，SFF107RF77-YVP90S4，SFF107RF77-YVPEJ100L4，SFF107RF77-YVPEJ112M4，SFF107RF77-YVPEJ63M4，SFF107RF77-YVPEJ71M4，SFF107RF77-YVPEJ80M4，SFF107RF77-YVPEJ90S4，AFF107R77-Y0.12KW，AFF107R77-Y0.18KW，AFF107R77-Y0.25KW，AFF107R77-Y0.37KW，AFF107R77-Y0.55KW，AFF107R77-Y0.75KW，AFF107R77-Y1.1KW，AFF107R77-Y1.5KW，AFF107R77-Y100M4，AFF107R77-Y112M4，AFF107R77-Y2.2KW，AFF107R77-Y3KW，AFF107R77-Y4KW，AFF107R77-Y63M4，AFF107R77-Y71M4，AFF107R77-Y80M4，AFF107R77-Y90M4，AFF107RF77-Y100M4，AFF107RF77-Y112M4，AFF107RF77-Y63M4，AFF107RF77-Y71M4，AFF107RF77-Y80M4，AFF107RF77-Y90M4，AFF107RF77-YB100L4，AFF107RF77-YB112M4，AFF107RF77-YB63M4，AFF107RF77-YB71M4，AFF107RF77-YB80M4，AFF107RF77-YB90S4，AFF107RF77-YDP100L4，AFF107RF77-YDP112M4，AFF107RF77-YDP63M4，AFF107RF77-YDP71M4，AFF107RF77-YDP80M4，AFF107RF77-YDP90S4，AFF107RF77-YE100L4，AFF107RF77-YE112M4，AFF107RF77-YE63M4，AFF107RF77-YE71M4，AFF107RF77-YE80M4，AFF107RF77-YE90S4，AFF107RF77-YEJ100L4，AFF107RF77-YEJ112M4，AFF107RF77-YEJ63M4，AFF107RF77-YEJ71M4，AFF107RF77-YEJ80M4，AFF107RF77-YEJ90S4，AFF107RF77-YEJB100L4，AFF107RF77-YEJB112M4，AFF107RF77-YEJB63M4，AFF107RF77-YEJB71M4，AFF107RF77-YEJB80M4，AFF107RF77-YEJB90S4，AFF107RF77-YP100L4，AFF107RF77-YP112M4，AFF107RF77-YP63M4，AFF107RF77-YP71M4，AFF107RF77-YP80M4，AFF107RF77-YP90S4，AFF107RF77-YPB100L4，AFF107RF77-YPB112M4，AFF107RF77-YPB63M4，AFF107RF77-YPB71M4，AFF107RF77-YPB80M4，AFF107RF77-YPB90S4，AFF107RF77-YPE100L4，AFF107RF77-YPE112M4，AFF107RF77-YPE63M4，AFF107RF77-YPE71M4，AFF107RF77-YPE80M4，AFF107RF77-YPE90S4，AFF107RF77-YS100L4，AFF107RF77-YS112M4，AFF107RF77-YS63M4，AFF107RF77-YS71M4，AFF107RF77-YS80M4，AFF107RF77-YS90S4，AFF107RF77-YVB100L4，AFF107RF77-YVB112M4，AFF107RF77-YVB63M4，AFF107RF77-YVB71M4，AFF107RF77-YVB80M4，AFF107RF77-YVB90S4，AFF107RF77-YVP100L4，AFF107RF77-YVP112M4，AFF107RF77-YVP63M4，AFF107RF77-YVP71M4，AFF107RF77-YVP80M4，AFF107RF77-YVP90S4，AFF107RF77-YVPEJ100L4，AFF107RF77-YVPEJ112M4，AFF107RF77-YVPEJ63M4，AFF107RF77-YVPEJ71M4，AFF107RF77-YVPEJ80M4，AFF107RF77-YVPEJ90S4，FWF107RW77-Y0.12KW，FWF107RW77-Y0.18KW，FWF107RW77-Y0.25KW，FWF107RW77-Y0.37KW，FWF107RW77-Y0.55KW，FWF107RW77-Y0.75KW，FWF107RW77-Y1.1KW，FWF107RW77-Y1.5KW，FWF107RW77-Y100M4，FWF107RW77-Y112M4，FWF107RW77-Y2.2KW，FWF107RW77-Y3KW，FWF107RW77-Y4KW，FWF107RW77-Y63M4，FWF107RW77-Y71M4，FWF107RW77-Y80M4，FWF107RW77-Y90M4，FWF107RWFF77-Y100M4，FWF107RWFF77-Y112M4，FWF107RWFF77-Y63M4，FWF107RWFF77-Y71M4，FWF107RWFF77-Y80M4，FWF107RWFF77-Y90M4，FWF107RWFF77-YB100L4，FWF107RWFF77-YB112M4，FWF107RWFF77-YB63M4，FWF107RWFF77-YB71M4，FWF107RWFF77-YB80M4，FWF107RWFF77-YB90S4，FWF107RWFF77-YDP100L4，FWF107RWFF77-YDP112M4，FWF107RWFF77-YDP63M4，FWF107RWFF77-YDP71M4，FWF107RWFF77-YDP80M4，FWF107RWFF77-YDP90S4，FWF107RWFF77-YE100L4，FWF107RWFF77-YE112M4，FWF107RWFF77-YE63M4，FWF107RWFF77-YE71M4，FWF107RWFF77-YE80M4，FWF107RWFF77-YE90S4，FWF107RWFF77-YEJ100L4，FWF107RWFF77-YEJ112M4，FWF107RWFF77-YEJ63M4，FWF107RWFF77-YEJ71M4，FWF107RWFF77-YEJ80M4，FWF107RWFF77-YEJ90S4，FWF107RWFF77-YEJB100L4，FWF107RWFF77-YEJB112M4，FWF107RWFF77-YEJB63M4，FWF107RWFF77-YEJB71M4，FWF107RWFF77-YEJB80M4，FWF107RWFF77-YEJB90S4，FWF107RWFF77-YP100L4，FWF107RWFF77-YP112M4，FWF107RWFF77-YP63M4，FWF107RWFF77-YP71M4，FWF107RWFF77-YP80M4，FWF107RWFF77-YP90S4，FWF107RWFF77-YPB100L4，FWF107RWFF77-YPB112M4，FWF107RWFF77-YPB63M4，FWF107RWFF77-YPB71M4，FWF107RWFF77-YPB80M4，FWF107RWFF77-YPB90S4，FWF107RWFF77-YPE100L4，FWF107RWFF77-YPE112M4，FWF107RWFF77-YPE63M4，FWF107RWFF77-YPE71M4，FWF107RWFF77-YPE80M4，FWF107RWFF77-YPE90S4，FWF107RWFF77-YS100L4，FWF107RWFF77-YS112M4，FWF107RWFF77-YS63M4，FWF107RWFF77-YS71M4，FWF107RWFF77-YS80M4，FWF107RWFF77-YS90S4，FWF107RWFF77-YVB100L4，FWF107RWFF77-YVB112M4，FWF107RWFF77-YVB63M4，FWF107RWFF77-YVB71M4，FWF107RWFF77-YVB80M4，FWF107RWFF77-YVB90S4，FWF107RWFF77-YVP100L4，FWF107RWFF77-YVP112M4，FWF107RWFF77-YVP63M4，FWF107RWFF77-YVP71M4，FWF107RWFF77-YVP80M4，FWF107RWFF77-YVP90S4，FWF107RWFF77-YVPEJ100L4，FWF107RWFF77-YVPEJ112M4，FWF107RWFF77-YVPEJ63M4，FWF107RWFF77-YVPEJ71M4，FWF107RWFF77-YVPEJ80M4，FWF107RWFF77-YVPEJ90S4，FF109R79-Y0.12KW，FF109R79-Y0.18KW，FF109R79-Y0.25KW，FF109R79-Y0.37KW，FF109R79-Y0.55KW，FF109R79-Y0.75KW，FF109R79-Y1.1KW，FF109R79-Y1.5KW，FF109R79-Y100M4，FF109R79-Y112M4，FF109R79-Y2.2KW，FF109R79-Y3KW，FF109R79-Y4KW，FF109R79-Y63M4，FF109R79-Y71M4，FF109R79-Y80M4，FF109R79-Y90M4，FF109RF79-Y100M4，FF109RF79-Y112M4，FF109RF79-Y63M4，FF109RF79-Y71M4，FF109RF79-Y80M4，FF109RF79-Y90M4，FF109RF79-YB100L4，FF109RF79-YB112M4，FF109RF79-YB63M4，FF109RF79-YB71M4，FF109RF79-YB80M4，FF109RF79-YB90S4，FF109RF79-YDP100L4，FF109RF79-YDP112M4，FF109RF79-YDP63M4，FF109RF79-YDP71M4，FF109RF79-YDP80M4，FF109RF79-YDP90S4，FF109RF79-YE100L4，FF109RF79-YE112M4，FF109RF79-YE63M4，FF109RF79-YE71M4，FF109RF79-YE80M4，FF109RF79-YE90S4，FF109RF79-YEJ100L4，FF109RF79-YEJ112M4，FF109RF79-YEJ63M4，FF109RF79-YEJ71M4，FF109RF79-YEJ80M4，FF109RF79-YEJ90S4，FF109RF79-YEJB100L4，FF109RF79-YEJB112M4，FF109RF79-YEJB63M4，FF109RF79-YEJB71M4，FF109RF79-YEJB80M4，FF109RF79-YEJB90S4，FF109RF79-YP100L4，FF109RF79-YP112M4，FF109RF79-YP63M4，FF109RF79-YP71M4，FF109RF79-YP80M4，FF109RF79-YP90S4，FF109RF79-YPB100L4，FF109RF79-YPB112M4，FF109RF79-YPB63M4，FF109RF79-YPB71M4，FF109RF79-YPB80M4，FF109RF79-YPB90S4，FF109RF79-YPE100L4，FF109RF79-YPE112M4，FF109RF79-YPE63M4，FF109RF79-YPE71M4，FF109RF79-YPE80M4，FF109RF79-YPE90S4，FF109RF79-YS100L4，FF109RF79-YS112M4，FF109RF79-YS63M4，FF109RF79-YS71M4，FF109RF79-YS80M4，FF109RF79-YS90S4，FF109RF79-YVB100L4，FF109RF79-YVB112M4，FF109RF79-YVB63M4，FF109RF79-YVB71M4，FF109RF79-YVB80M4，FF109RF79-YVB90S4，FF109RF79-YVP100L4，FF109RF79-YVP112M4，FF109RF79-YVP63M4，FF109RF79-YVP71M4，FF109RF79-YVP80M4，FF109RF79-YVP90S4，FF109RF79-YVPEJ100L4，FF109RF79-YVPEJ112M4，FF109RF79-YVPEJ63M4，FF109RF79-YVPEJ71M4，FF109RF79-YVPEJ80M4，FF109RF79-YVPEJ90S4。

FF109R79減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.jinmiba.com/product/list-ffxiliejiansuji-cn.html

推薦型號：F109減速機
