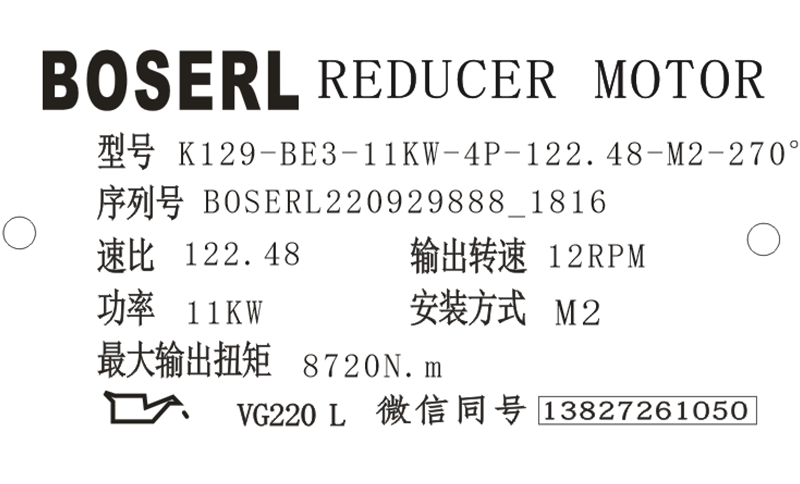

K129減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K129減速器選型樣本。

K129-BE3-11KW-4P-122.48-M2-270°

K：系列代號

129：減速機規格代號

BE3：電機

11KW：電機功率

4P：電機級數

122.48：減速機傳動比

M2：減速機安裝位置

270°：接線盒位置

K129減速器上的圖標說明：下表列出安裝位置章節中所采用的圖標及其含義

K129減速器安裝所需工具以及材料：

由于安裝位置的原因，從油位螺栓觀察，油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時，潤滑油加注油量和透氣閥的位置必須作相應的調整。K129減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近！同時還要檢查，注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。K129減速器在出廠時加注了相應油量的潤滑油。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將K129減速器的安裝位置改變為M5或M6，或者M5、M6之間的安裝位置，請您咨詢BOSERL公司客戶服務部。若要將K129減速器改裝成M2或M3時，請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕，請您在K129減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須＜109Ω。電化學腐蝕可能發生在不同的金屬物質之間，如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片！還要通過電機上的接地螺栓對K129減速器箱體進行連接接地。直角減速機

輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件（墊片、間隔環）、輸入/輸出元件的緊固裝置、 潤滑油（K129減速器出廠已經自帶潤滑油）、用于緊固螺栓的密封膠（針對帶對中軸肩的輸入軸裝置AD/ZR），所有的標準部件均不是供貨范圍。

K129減速器故障售后服務統籌：

K129減速器潤滑油泄露：K129減速器密封面密封性能不良，擰緊K129減速器蓋上的螺釘并觀察K129減速器。如果潤滑油繼續泄露，請向客戶服務部咨詢；密封圈損壞，請向客戶服務部咨詢；K129減速器透氣閥失效，給K129減速器透氣參見“K129減速器說明書的安裝位置”章節。齒輪減速電機

K129減速器異常、無規律的運轉噪音：軸承損壞，檢查潤滑油參見“K129減速器說明書的檢查/維護”章節，更換軸承；齒輪有損失，請向客戶服務部咨詢；潤滑油中有異物，檢查潤滑油參見“K129減速器說明書的檢查/維護”章節；傳動裝置停車，請向客戶服務部咨詢；

K129減速器潤滑油從透氣閥處滲出：潤滑油太多，調節油量參見“K129減速器說明書的檢查/維護”章節；K129減速器安裝位置錯誤，正確安裝透氣閥參見“K129減速器說明書的安裝位置”章節，調節油位參見“K129減速器說明書的檢查/維護”章節。

K129減速器電機或輸入軸轉動，而輸出軸不轉：K129減速器中的軸輪轂聯接斷裂，將K129減速器或減速電機送來我司修理。K系列減速機

在磨合期（48小時的運轉時間內）油封可能出現短期內的滲油或油脂的現象。對K129減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障，請與BOSERL公司客戶服務部聯系。

K129減速器型號：

KW127-Y112M4，KW127-Y11KW，KW127-Y132M4，KW127-Y15KW，KW127-Y160M4，KW127-Y18.5KW，KW127-Y180M4，KW127-Y200M4，KW127-Y225M4，KW127-Y22KW，KW127-Y250M4，KW127-Y280M4，KW127-Y30KW，KW127-Y37KW，KW127-Y45KW，KW127-Y4KW，KW127-Y5.5KW，KW127-Y55KW，KW127-Y7.5KW，KW127-Y75KW，KW127-YB112M4，KW127-YB132M4，KW127-YB160M4，KW127-YB180M4，KW127-YB200M4，KW127-YB225M4，KW127-YB250M4，KW127-YB280M4，KW127-YDP112M4，KW127-YDP132M4，KW127-YDP160M4，KW127-YDP180M4，KW127-YDP200M4，KW127-YDP225M4，KW127-YDP250M4，KW127-YDP280M4，KW127-YE112M4，KW127-YE132M4，KW127-YE160M4，KW127-YE180M4，KW127-YE200M4，KW127-YE225M4，KW127-YE250M4，KW127-YE280M4，KW127-YEJ112M4，KW127-YEJ132M4，KW127-YEJ160M4，KW127-YEJ180M4，KW127-YEJ200M4，KW127-YEJ225M4，KW127-YEJ250M4，KW127-YEJ280M4，KW127-YEJB112M4，KW127-YEJB132M4，KW127-YEJB160M4，KW127-YEJB180M4，KW127-YEJB200M4，KW127-YEJB225M4，KW127-YEJB250M4，KW127-YEJB280M4，KW127-YP112M4，KW127-YP132M4，KW127-YP160M4，KW127-YP180M4，KW127-YP200M4，KW127-YP225M4，KW127-YP250M4，KW127-YP280M4，KW127-YPB112M4，KW127-YPB132M4，KW127-YPB160M4，KW127-YPB180M4，KW127-YPB200M4，KW127-YPB225M4，KW127-YPB250M4，KW127-YPB280M4，KW127-YPE112M4，KW127-YPE132M4，KW127-YPE160M4，KW127-YPE180M4，KW127-YPE200M4，KW127-YPE225M4，KW127-YPE250M4，KW127-YPE280M4，KW127-YS112M4，KW127-YS132M4，KW127-YS160M4，KW127-YS180M4，KW127-YS200M4，KW127-YS225M4，KW127-YS250M4，KW127-YS280M4，KW127-YVB112M4，KW127-YVB132M4，KW127-YVB160M4，KW127-YVB180M4，KW127-YVB200M4，KW127-YVB225M4，KW127-YVB250M4，KW127-YVB280M4，KW127-YVP112M4，KW127-YVP132M4，KW127-YVP160M4，KW127-YVP180M4，KW127-YVP200M4，KW127-YVP225M4，KW127-YVP250M4，KW127-YVP280M4，KW127-YVPEJ112M4，KW127-YVPEJ132M4，KW127-YVPEJ160M4，KW127-YVPEJ180M4，KW127-YVPEJ200M4，KW127-YVPEJ225M4，KW127-YVPEJ250M4，KW127-YVPEJ280M4，XDK127-Y112M4，XDK127-Y11KW，XDK127-Y132M4，XDK127-Y15KW，XDK127-Y160M4，XDK127-Y18.5KW，XDK127-Y180M4，XDK127-Y200M4，XDK127-Y225M4，XDK127-Y22KW，XDK127-Y250M4，XDK127-Y280M4，XDK127-Y30KW，XDK127-Y37KW，XDK127-Y45KW，XDK127-Y4KW，XDK127-Y5.5KW，XDK127-Y55KW，XDK127-Y7.5KW，XDK127-Y75KW，XDK127-YB112M4，XDK127-YB132M4，XDK127-YB160M4，XDK127-YB180M4，XDK127-YB200M4，XDK127-YB225M4，XDK127-YB250M4，XDK127-YB280M4，XDK127-YDP112M4，XDK127-YDP132M4，XDK127-YDP160M4，XDK127-YDP180M4，XDK127-YDP200M4，XDK127-YDP225M4，XDK127-YDP250M4，XDK127-YDP280M4，XDK127-YE112M4，XDK127-YE132M4，XDK127-YE160M4，XDK127-YE180M4，XDK127-YE200M4，XDK127-YE225M4，XDK127-YE250M4，XDK127-YE280M4，XDK127-YEJ112M4，XDK127-YEJ132M4，XDK127-YEJ160M4，XDK127-YEJ180M4，XDK127-YEJ200M4，XDK127-YEJ225M4，XDK127-YEJ250M4，XDK127-YEJ280M4，XDK127-YEJB112M4，XDK127-YEJB132M4，XDK127-YEJB160M4，XDK127-YEJB180M4，XDK127-YEJB200M4，XDK127-YEJB225M4，XDK127-YEJB250M4，XDK127-YEJB280M4，XDK127-YP112M4，XDK127-YP132M4，XDK127-YP160M4，XDK127-YP180M4，XDK127-YP200M4，XDK127-YP225M4，XDK127-YP250M4，XDK127-YP280M4，XDK127-YPB112M4，XDK127-YPB132M4，XDK127-YPB160M4，XDK127-YPB180M4，XDK127-YPB200M4，XDK127-YPB225M4，XDK127-YPB250M4，XDK127-YPB280M4，XDK127-YPE112M4，XDK127-YPE132M4，XDK127-YPE160M4，XDK127-YPE180M4，XDK127-YPE200M4，XDK127-YPE225M4，XDK127-YPE250M4，XDK127-YPE280M4，XDK127-YS112M4，XDK127-YS132M4，XDK127-YS160M4，XDK127-YS180M4，XDK127-YS200M4，XDK127-YS225M4，XDK127-YS250M4，XDK127-YS280M4，XDK127-YVB112M4，XDK127-YVB132M4，XDK127-YVB160M4，XDK127-YVB180M4，XDK127-YVB200M4，XDK127-YVB225M4，XDK127-YVB250M4，XDK127-YVB280M4，XDK127-YVP112M4，XDK127-YVP132M4，XDK127-YVP160M4，XDK127-YVP180M4，XDK127-YVP200M4，XDK127-YVP225M4，XDK127-YVP250M4，XDK127-YVP280M4，XDK127-YVPEJ112M4，XDK127-YVPEJ132M4，XDK127-YVPEJ160M4，XDK127-YVPEJ180M4，XDK127-YVPEJ200M4，XDK127-YVPEJ225M4，XDK127-YVPEJ250M4，XDK127-YVPEJ280M4，YQK127-Y112M4，YQK127-Y11KW，YQK127-Y132M4，YQK127-Y15KW，YQK127-Y160M4，YQK127-Y18.5KW，YQK127-Y180M4，YQK127-Y200M4，YQK127-Y225M4，YQK127-Y22KW，YQK127-Y250M4，YQK127-Y280M4，YQK127-Y30KW，YQK127-Y37KW，YQK127-Y45KW，YQK127-Y4KW，YQK127-Y5.5KW，YQK127-Y55KW，YQK127-Y7.5KW，YQK127-Y75KW，YQK127-YB112M4，YQK127-YB132M4，YQK127-YB160M4，YQK127-YB180M4，YQK127-YB200M4，YQK127-YB225M4，YQK127-YB250M4，YQK127-YB280M4，YQK127-YDP112M4，YQK127-YDP132M4，YQK127-YDP160M4，YQK127-YDP180M4，YQK127-YDP200M4，YQK127-YDP225M4，YQK127-YDP250M4，YQK127-YDP280M4，YQK127-YE112M4，YQK127-YE132M4，YQK127-YE160M4，YQK127-YE180M4，YQK127-YE200M4，YQK127-YE225M4，YQK127-YE250M4，YQK127-YE280M4，YQK127-YEJ112M4，YQK127-YEJ132M4，YQK127-YEJ160M4，YQK127-YEJ180M4，YQK127-YEJ200M4，YQK127-YEJ225M4，YQK127-YEJ250M4，YQK127-YEJ280M4，YQK127-YEJB112M4，YQK127-YEJB132M4，YQK127-YEJB160M4，YQK127-YEJB180M4，YQK127-YEJB200M4，YQK127-YEJB225M4，YQK127-YEJB250M4，YQK127-YEJB280M4，YQK127-YP112M4，YQK127-YP132M4，YQK127-YP160M4，YQK127-YP180M4，YQK127-YP200M4，YQK127-YP225M4，YQK127-YP250M4，YQK127-YP280M4，YQK127-YPB112M4，YQK127-YPB132M4，YQK127-YPB160M4，YQK127-YPB180M4，YQK127-YPB200M4，YQK127-YPB225M4，YQK127-YPB250M4，YQK127-YPB280M4，YQK127-YPE112M4，YQK127-YPE132M4，YQK127-YPE160M4，YQK127-YPE180M4，YQK127-YPE200M4，YQK127-YPE225M4，YQK127-YPE250M4，YQK127-YPE280M4，YQK127-YS112M4，YQK127-YS132M4，YQK127-YS160M4，YQK127-YS180M4，YQK127-YS200M4，YQK127-YS225M4，YQK127-YS250M4，YQK127-YS280M4，YQK127-YVB112M4，YQK127-YVB132M4，YQK127-YVB160M4，YQK127-YVB180M4，YQK127-YVB200M4，YQK127-YVB225M4，YQK127-YVB250M4，YQK127-YVB280M4，YQK127-YVP112M4，YQK127-YVP132M4，YQK127-YVP160M4，YQK127-YVP180M4，YQK127-YVP200M4，YQK127-YVP225M4，YQK127-YVP250M4，YQK127-YVP280M4，YQK127-YVPEJ112M4，YQK127-YVPEJ132M4，YQK127-YVPEJ160M4，YQK127-YVPEJ180M4，YQK127-YVPEJ200M4，YQK127-YVPEJ225M4，YQK127-YVPEJ250M4，YQK127-YVPEJ280M4，JCK127-Y112M4，JCK127-Y11KW，JCK127-Y132M4，JCK127-Y15KW，JCK127-Y160M4，JCK127-Y18.5KW，JCK127-Y180M4，JCK127-Y200M4，JCK127-Y225M4，JCK127-Y22KW，JCK127-Y250M4，JCK127-Y280M4，JCK127-Y30KW，JCK127-Y37KW，JCK127-Y45KW，JCK127-Y4KW，JCK127-Y5.5KW，JCK127-Y55KW，JCK127-Y7.5KW，JCK127-Y75KW，JCK127-YB112M4，JCK127-YB132M4，JCK127-YB160M4，JCK127-YB180M4，JCK127-YB200M4，JCK127-YB225M4，JCK127-YB250M4，JCK127-YB280M4，JCK127-YDP112M4，JCK127-YDP132M4，JCK127-YDP160M4，JCK127-YDP180M4，JCK127-YDP200M4，JCK127-YDP225M4，JCK127-YDP250M4，JCK127-YDP280M4，JCK127-YE112M4，JCK127-YE132M4，JCK127-YE160M4，JCK127-YE180M4，JCK127-YE200M4，JCK127-YE225M4，JCK127-YE250M4，JCK127-YE280M4，JCK127-YEJ112M4，JCK127-YEJ132M4，JCK127-YEJ160M4，JCK127-YEJ180M4，JCK127-YEJ200M4，JCK127-YEJ225M4，JCK127-YEJ250M4，JCK127-YEJ280M4，JCK127-YEJB112M4，JCK127-YEJB132M4，JCK127-YEJB160M4，JCK127-YEJB180M4，JCK127-YEJB200M4，JCK127-YEJB225M4，JCK127-YEJB250M4，JCK127-YEJB280M4，JCK127-YP112M4，JCK127-YP132M4，JCK127-YP160M4，JCK127-YP180M4，JCK127-YP200M4，JCK127-YP225M4，JCK127-YP250M4，JCK127-YP280M4，JCK127-YPB112M4，JCK127-YPB132M4，JCK127-YPB160M4，JCK127-YPB180M4，JCK127-YPB200M4，JCK127-YPB225M4，JCK127-YPB250M4，JCK127-YPB280M4，JCK127-YPE112M4，JCK127-YPE132M4，JCK127-YPE160M4，JCK127-YPE180M4，JCK127-YPE200M4，JCK127-YPE225M4，JCK127-YPE250M4，JCK127-YPE280M4，JCK127-YS112M4，JCK127-YS132M4，JCK127-YS160M4，JCK127-YS180M4，JCK127-YS200M4，JCK127-YS225M4，JCK127-YS250M4，JCK127-YS280M4，JCK127-YVB112M4，JCK127-YVB132M4，JCK127-YVB160M4，JCK127-YVB180M4，JCK127-YVB200M4，JCK127-YVB225M4，JCK127-YVB250M4，JCK127-YVB280M4，JCK127-YVP112M4，JCK127-YVP132M4，JCK127-YVP160M4，JCK127-YVP180M4，JCK127-YVP200M4，JCK127-YVP225M4，JCK127-YVP250M4，JCK127-YVP280M4，JCK127-YVPEJ112M4，JCK127-YVPEJ132M4，JCK127-YVPEJ160M4，JCK127-YVPEJ180M4，JCK127-YVPEJ200M4，JCK127-YVPEJ225M4，JCK127-YVPEJ250M4，JCK127-YVPEJ280M4，K129-Y112M4，K129-Y11KW，K129-Y132M4，K129-Y15KW，K129-Y160M4，K129-Y18.5KW，K129-Y180M4，K129-Y200M4，K129-Y225M4，K129-Y22KW，K129-Y250M4，K129-Y280M4，K129-Y30KW，K129-Y37KW，K129-Y45KW，K129-Y4KW，K129-Y5.5KW，K129-Y55KW，K129-Y7.5KW，K129-Y75KW，K129-YB112M4，K129-YB132M4，K129-YB160M4，K129-YB180M4，K129-YB200M4，K129-YB225M4，K129-YB250M4，K129-YB280M4，K129-YDP112M4，K129-YDP132M4，K129-YDP160M4，K129-YDP180M4，K129-YDP200M4，K129-YDP225M4，K129-YDP250M4，K129-YDP280M4，K129-YE112M4，K129-YE132M4，K129-YE160M4，K129-YE180M4，K129-YE200M4，K129-YE225M4，K129-YE250M4，K129-YE280M4，K129-YEJ112M4，K129-YEJ132M4，K129-YEJ160M4，K129-YEJ180M4，K129-YEJ200M4，K129-YEJ225M4，K129-YEJ250M4，K129-YEJ280M4，K129-YEJB112M4，K129-YEJB132M4，K129-YEJB160M4，K129-YEJB180M4，K129-YEJB200M4，K129-YEJB225M4，K129-YEJB250M4，K129-YEJB280M4，K129-YP112M4，K129-YP132M4，K129-YP160M4，K129-YP180M4，K129-YP200M4，K129-YP225M4，K129-YP250M4，K129-YP280M4，K129-YPB112M4，K129-YPB132M4，K129-YPB160M4，K129-YPB180M4，K129-YPB200M4，K129-YPB225M4，K129-YPB250M4，K129-YPB280M4，K129-YPE112M4，K129-YPE132M4，K129-YPE160M4，K129-YPE180M4，K129-YPE200M4，K129-YPE225M4，K129-YPE250M4，K129-YPE280M4，K129-YS112M4，K129-YS132M4，K129-YS160M4，K129-YS180M4，K129-YS200M4，K129-YS225M4，K129-YS250M4，K129-YS280M4，K129-YVB112M4，K129-YVB132M4，K129-YVB160M4，K129-YVB180M4，K129-YVB200M4，K129-YVB225M4，K129-YVB250M4，K129-YVB280M4，K129-YVP112M4，K129-YVP132M4，K129-YVP160M4，K129-YVP180M4，K129-YVP200M4，K129-YVP225M4，K129-YVP250M4，K129-YVP280M4，K129-YVPEJ112M4，K129-YVPEJ132M4，K129-YVPEJ160M4，K129-YVPEJ180M4，K129-YVPEJ200M4，K129-YVPEJ225M4，K129-YVPEJ250M4，K129-YVPEJ280M4，K127SF80，K127SF90，K127SF100，K127SF112，K127SF115，K127SF140，K127SF160，K127SF190。

K129減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.jinmiba.com/product/list-kxiliejiansuji-cn.html

推薦類似型號：K129減速機
