KA169減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA169減速器選型樣本。

KA169-BVB-37KW-4P-87.86-M5-90°

KA：系列代號

169：減速機規格代號

BVB：電機

37KW：電機功率

4P：電機級數

87.86：減速機傳動比

M5：減速機安裝位置

90°：接線盒位置

KA169減速器逆止器安裝：

KA169減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。齒輪減速電機

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。

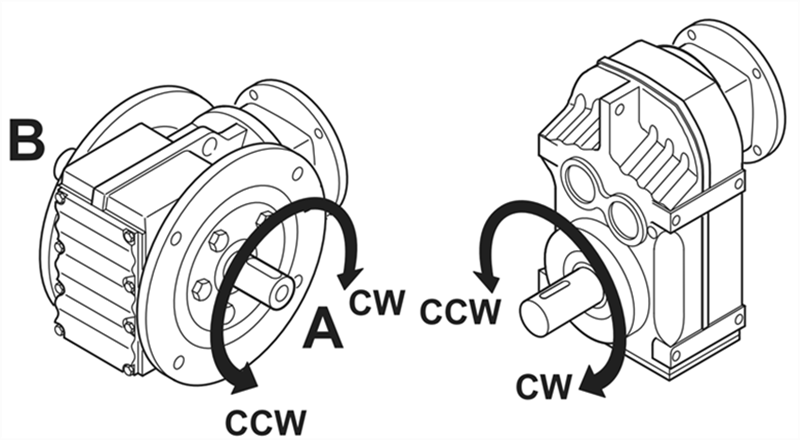

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。

KA169減速器潤滑油更換：

由于KA169減速器發熱或KA169減速器油溫過高可能引起燙傷，對KA169減速器進行操作前先冷卻，KA169減速器必須保持一定溫度以避免由于油溫過低引起流動性差影響正常排放。直角減速機

通過放油螺栓和透氣閥進行換油：將一個容器置于放油螺栓下方；卸下油位檢查螺栓、透氣閥與放油螺栓；將潤滑油完全排放；重新擰入放油螺栓；通過透氣閥注入新的同類潤滑油（否則必須與客戶服務聯系），禁止混用不同種類的合成潤滑油；重新擰入油位檢查螺栓與透氣閥。

通過安裝蓋換油：擰開安裝蓋的螺絲，打開安裝蓋提取少許潤滑油，檢查潤滑油的狀況，將潤滑油完全排放，裝上安裝蓋。

通過密封螺栓換油：通過密封孔將潤滑油完全排放；通過檢查孔加入新的同類潤滑油（否則必須與客戶服務部聯系），禁止混用不同種類的合成潤滑油；檢查油位；重新擰緊密封螺栓。空心軸減速機

KA169減速器電機型號：

KWA167-Y110KWA，KWA167-Y11KWA，KWA167-Y132KWA，KWA167-Y15KWA，KWA167-Y160KWA，KWA167-Y160M4，KWA167-Y18.5KWA，KWA167-Y180M4，KWA167-Y200KWA，KWA167-Y200M4，KWA167-Y225M4，KWA167-Y22KWA，KWA167-Y250M4，KWA167-Y280M4，KWA167-Y30KWA，KWA167-Y315M4，KWA167-Y37KWA，KWA167-Y45KWA，KWA167-Y55KWA，KWA167-Y75KWA，KWA167-Y90KWA，KWA167-YB160M4，KWA167-YB180M4，KWA167-YB200M4，KWA167-YB225M4，KWA167-YB250M4，KWA167-YB280M4，KWA167-YB315M4，KWA167-YDP160M4，KWA167-YDP180M4，KWA167-YDP200M4，KWA167-YDP225M4，KWA167-YDP250M4，KWA167-YDP280M4，KWA167-YDP315M4，KWA167-YE160M4，KWA167-YE180M4，KWA167-YE200M4，KWA167-YE225M4，KWA167-YE250M4，KWA167-YE280M4，KWA167-YE315M4，KWA167-YEJ160M4，KWA167-YEJ180M4，KWA167-YEJ200M4，KWA167-YEJ225M4，KWA167-YEJ250M4，KWA167-YEJ280M4，KWA167-YEJ315M4，KWA167-YEJB160M4，KWA167-YEJB180M4，KWA167-YEJB200M4，KWA167-YEJB225M4，KWA167-YEJB250M4，KWA167-YEJB280M4，KWA167-YEJB315M4，KWA167-YP160M4，KWA167-YP180M4，KWA167-YP200M4，KWA167-YP225M4，KWA167-YP250M4，KWA167-YP280M4，KWA167-YP315M4，KWA167-YPB160M4，KWA167-YPB180M4，KWA167-YPB200M4，KWA167-YPB225M4，KWA167-YPB250M4，KWA167-YPB280M4，KWA167-YPB315M4，KWA167-YPE160M4，KWA167-YPE180M4，KWA167-YPE200M4，KWA167-YPE225M4，KWA167-YPE250M4，KWA167-YPE280M4，KWA167-YPE315M4，KWA167-YS160M4，KWA167-YS180M4，KWA167-YS200M4，KWA167-YS225M4，KWA167-YS250M4，KWA167-YS280M4，KWA167-YS315M4，KWA167-YVB160M4，KWA167-YVB180M4，KWA167-YVB200M4，KWA167-YVB225M4，KWA167-YVB250M4，KWA167-YVB280M4，KWA167-YVB315M4，KWA167-YVP160M4，KWA167-YVP180M4，KWA167-YVP200M4，KWA167-YVP225M4，KWA167-YVP250M4，KWA167-YVP280M4，KWA167-YVP315M4，KWA167-YVPEJ160M4，KWA167-YVPEJ180M4，KWA167-YVPEJ200M4，KWA167-YVPEJ225M4，KWA167-YVPEJ250M4，KWA167-YVPEJ280M4，KWA167-YVPEJ315M4，XDKA167-Y110KWA，XDKA167-Y11KWA，XDKA167-Y132KWA，XDKA167-Y15KWA，XDKA167-Y160KWA，XDKA167-Y160M4，XDKA167-Y18.5KWA，XDKA167-Y180M4，XDKA167-Y200KWA，XDKA167-Y200M4，XDKA167-Y225M4，XDKA167-Y22KWA，XDKA167-Y250M4，XDKA167-Y280M4，XDKA167-Y30KWA，XDKA167-Y315M4，XDKA167-Y37KWA，XDKA167-Y45KWA，XDKA167-Y55KWA，XDKA167-Y75KWA，XDKA167-Y90KWA，XDKA167-YB160M4，XDKA167-YB180M4，XDKA167-YB200M4，XDKA167-YB225M4，XDKA167-YB250M4，XDKA167-YB280M4，XDKA167-YB315M4，XDKA167-YDP160M4，XDKA167-YDP180M4，XDKA167-YDP200M4，XDKA167-YDP225M4，XDKA167-YDP250M4，XDKA167-YDP280M4，XDKA167-YDP315M4，XDKA167-YE160M4，XDKA167-YE180M4，XDKA167-YE200M4，XDKA167-YE225M4，XDKA167-YE250M4，XDKA167-YE280M4，XDKA167-YE315M4，XDKA167-YEJ160M4，XDKA167-YEJ180M4，XDKA167-YEJ200M4，XDKA167-YEJ225M4，XDKA167-YEJ250M4，XDKA167-YEJ280M4，XDKA167-YEJ315M4，XDKA167-YEJB160M4，XDKA167-YEJB180M4，XDKA167-YEJB200M4，XDKA167-YEJB225M4，XDKA167-YEJB250M4，XDKA167-YEJB280M4，XDKA167-YEJB315M4，XDKA167-YP160M4，XDKA167-YP180M4，XDKA167-YP200M4，XDKA167-YP225M4，XDKA167-YP250M4，XDKA167-YP280M4，XDKA167-YP315M4，XDKA167-YPB160M4，XDKA167-YPB180M4，XDKA167-YPB200M4，XDKA167-YPB225M4，XDKA167-YPB250M4，XDKA167-YPB280M4，XDKA167-YPB315M4，XDKA167-YPE160M4，XDKA167-YPE180M4，XDKA167-YPE200M4，XDKA167-YPE225M4，XDKA167-YPE250M4，XDKA167-YPE280M4，XDKA167-YPE315M4，XDKA167-YS160M4，XDKA167-YS180M4，XDKA167-YS200M4，XDKA167-YS225M4，XDKA167-YS250M4，XDKA167-YS280M4，XDKA167-YS315M4，XDKA167-YVB160M4，XDKA167-YVB180M4，XDKA167-YVB200M4，XDKA167-YVB225M4，XDKA167-YVB250M4，XDKA167-YVB280M4，XDKA167-YVB315M4，XDKA167-YVP160M4，XDKA167-YVP180M4，XDKA167-YVP200M4，XDKA167-YVP225M4，XDKA167-YVP250M4，XDKA167-YVP280M4，XDKA167-YVP315M4，XDKA167-YVPEJ160M4，XDKA167-YVPEJ180M4，XDKA167-YVPEJ200M4，XDKA167-YVPEJ225M4，XDKA167-YVPEJ250M4，XDKA167-YVPEJ280M4，XDKA167-YVPEJ315M4，YQKA167-Y110KWA，YQKA167-Y11KWA，YQKA167-Y132KWA，YQKA167-Y15KWA，YQKA167-Y160KWA，YQKA167-Y160M4，YQKA167-Y18.5KWA，YQKA167-Y180M4，YQKA167-Y200KWA，YQKA167-Y200M4，YQKA167-Y225M4，YQKA167-Y22KWA，YQKA167-Y250M4，YQKA167-Y280M4，YQKA167-Y30KWA，YQKA167-Y315M4，YQKA167-Y37KWA，YQKA167-Y45KWA，YQKA167-Y55KWA，YQKA167-Y75KWA，YQKA167-Y90KWA，YQKA167-YB160M4，YQKA167-YB180M4，YQKA167-YB200M4，YQKA167-YB225M4，YQKA167-YB250M4，YQKA167-YB280M4，YQKA167-YB315M4，YQKA167-YDP160M4，YQKA167-YDP180M4，YQKA167-YDP200M4，YQKA167-YDP225M4，YQKA167-YDP250M4，YQKA167-YDP280M4，YQKA167-YDP315M4，YQKA167-YE160M4，YQKA167-YE180M4，YQKA167-YE200M4，YQKA167-YE225M4，YQKA167-YE250M4，YQKA167-YE280M4，YQKA167-YE315M4，YQKA167-YEJ160M4，YQKA167-YEJ180M4，YQKA167-YEJ200M4，YQKA167-YEJ225M4，YQKA167-YEJ250M4，YQKA167-YEJ280M4，YQKA167-YEJ315M4，YQKA167-YEJB160M4，YQKA167-YEJB180M4，YQKA167-YEJB200M4，YQKA167-YEJB225M4，YQKA167-YEJB250M4，YQKA167-YEJB280M4，YQKA167-YEJB315M4，YQKA167-YP160M4，YQKA167-YP180M4，YQKA167-YP200M4，YQKA167-YP225M4，YQKA167-YP250M4，YQKA167-YP280M4，YQKA167-YP315M4，YQKA167-YPB160M4，YQKA167-YPB180M4，YQKA167-YPB200M4，YQKA167-YPB225M4，YQKA167-YPB250M4，YQKA167-YPB280M4，YQKA167-YPB315M4，YQKA167-YPE160M4，YQKA167-YPE180M4，YQKA167-YPE200M4，YQKA167-YPE225M4，YQKA167-YPE250M4，YQKA167-YPE280M4，YQKA167-YPE315M4，YQKA167-YS160M4，YQKA167-YS180M4，YQKA167-YS200M4，YQKA167-YS225M4，YQKA167-YS250M4，YQKA167-YS280M4，YQKA167-YS315M4，YQKA167-YVB160M4，YQKA167-YVB180M4，YQKA167-YVB200M4，YQKA167-YVB225M4，YQKA167-YVB250M4，YQKA167-YVB280M4，YQKA167-YVB315M4，YQKA167-YVP160M4，YQKA167-YVP180M4，YQKA167-YVP200M4，YQKA167-YVP225M4，YQKA167-YVP250M4，YQKA167-YVP280M4，YQKA167-YVP315M4，YQKA167-YVPEJ160M4，YQKA167-YVPEJ180M4，YQKA167-YVPEJ200M4，YQKA167-YVPEJ225M4，YQKA167-YVPEJ250M4，YQKA167-YVPEJ280M4，YQKA167-YVPEJ315M4，JCKA167-Y110KWA，JCKA167-Y11KWA，JCKA167-Y132KWA，JCKA167-Y15KWA，JCKA167-Y160KWA，JCKA167-Y160M4，JCKA167-Y18.5KWA，JCKA167-Y180M4，JCKA167-Y200KWA，JCKA167-Y200M4，JCKA167-Y225M4，JCKA167-Y22KWA，JCKA167-Y250M4，JCKA167-Y280M4，JCKA167-Y30KWA，JCKA167-Y315M4，JCKA167-Y37KWA，JCKA167-Y45KWA，JCKA167-Y55KWA，JCKA167-Y75KWA，JCKA167-Y90KWA，JCKA167-YB160M4，JCKA167-YB180M4，JCKA167-YB200M4，JCKA167-YB225M4，JCKA167-YB250M4，JCKA167-YB280M4，JCKA167-YB315M4，JCKA167-YDP160M4，JCKA167-YDP180M4，JCKA167-YDP200M4，JCKA167-YDP225M4，JCKA167-YDP250M4，JCKA167-YDP280M4，JCKA167-YDP315M4，JCKA167-YE160M4，JCKA167-YE180M4，JCKA167-YE200M4，JCKA167-YE225M4，JCKA167-YE250M4，JCKA167-YE280M4，JCKA167-YE315M4，JCKA167-YEJ160M4，JCKA167-YEJ180M4，JCKA167-YEJ200M4，JCKA167-YEJ225M4，JCKA167-YEJ250M4，JCKA167-YEJ280M4，JCKA167-YEJ315M4，JCKA167-YEJB160M4，JCKA167-YEJB180M4，JCKA167-YEJB200M4，JCKA167-YEJB225M4，JCKA167-YEJB250M4，JCKA167-YEJB280M4，JCKA167-YEJB315M4，JCKA167-YP160M4，JCKA167-YP180M4，JCKA167-YP200M4，JCKA167-YP225M4，JCKA167-YP250M4，JCKA167-YP280M4，JCKA167-YP315M4，JCKA167-YPB160M4，JCKA167-YPB180M4，JCKA167-YPB200M4，JCKA167-YPB225M4，JCKA167-YPB250M4，JCKA167-YPB280M4，JCKA167-YPB315M4，JCKA167-YPE160M4，JCKA167-YPE180M4，JCKA167-YPE200M4，JCKA167-YPE225M4，JCKA167-YPE250M4，JCKA167-YPE280M4，JCKA167-YPE315M4，JCKA167-YS160M4，JCKA167-YS180M4，JCKA167-YS200M4，JCKA167-YS225M4，JCKA167-YS250M4，JCKA167-YS280M4，JCKA167-YS315M4，JCKA167-YVB160M4，JCKA167-YVB180M4，JCKA167-YVB200M4，JCKA167-YVB225M4，JCKA167-YVB250M4，JCKA167-YVB280M4，JCKA167-YVB315M4，JCKA167-YVP160M4，JCKA167-YVP180M4，JCKA167-YVP200M4，JCKA167-YVP225M4，JCKA167-YVP250M4，JCKA167-YVP280M4，JCKA167-YVP315M4，JCKA167-YVPEJ160M4，JCKA167-YVPEJ180M4，JCKA167-YVPEJ200M4，JCKA167-YVPEJ225M4，JCKA167-YVPEJ250M4，JCKA167-YVPEJ280M4，JCKA167-YVPEJ315M4，KA169-Y110KWA，KA169-Y11KWA，KA169-Y132KWA，KA169-Y15KWA，KA169-Y160KWA，KA169-Y160M4，KA169-Y18.5KWA，KA169-Y180M4，KA169-Y200KWA，KA169-Y200M4，KA169-Y225M4，KA169-Y22KWA，KA169-Y250M4，KA169-Y280M4，KA169-Y30KWA，KA169-Y315M4，KA169-Y37KWA，KA169-Y45KWA，KA169-Y55KWA，KA169-Y75KWA，KA169-Y90KWA，KA169-YB160M4，KA169-YB180M4，KA169-YB200M4，KA169-YB225M4，KA169-YB250M4，KA169-YB280M4，KA169-YB315M4，KA169-YDP160M4，KA169-YDP180M4，KA169-YDP200M4，KA169-YDP225M4，KA169-YDP250M4，KA169-YDP280M4，KA169-YDP315M4，KA169-YE160M4，KA169-YE180M4，KA169-YE200M4，KA169-YE225M4，KA169-YE250M4，KA169-YE280M4，KA169-YE315M4，KA169-YEJ160M4，KA169-YEJ180M4，KA169-YEJ200M4，KA169-YEJ225M4，KA169-YEJ250M4，KA169-YEJ280M4，KA169-YEJ315M4，KA169-YEJB160M4，KA169-YEJB180M4，KA169-YEJB200M4，KA169-YEJB225M4，KA169-YEJB250M4，KA169-YEJB280M4，KA169-YEJB315M4，KA169-YP160M4，KA169-YP180M4，KA169-YP200M4，KA169-YP225M4，KA169-YP250M4，KA169-YP280M4，KA169-YP315M4，KA169-YPB160M4，KA169-YPB180M4，KA169-YPB200M4，KA169-YPB225M4，KA169-YPB250M4，KA169-YPB280M4，KA169-YPB315M4，KA169-YPE160M4，KA169-YPE180M4，KA169-YPE200M4，KA169-YPE225M4，KA169-YPE250M4，KA169-YPE280M4，KA169-YPE315M4，KA169-YS160M4，KA169-YS180M4，KA169-YS200M4，KA169-YS225M4，KA169-YS250M4，KA169-YS280M4，KA169-YS315M4，KA169-YVB160M4，KA169-YVB180M4，KA169-YVB200M4，KA169-YVB225M4，KA169-YVB250M4，KA169-YVB280M4，KA169-YVB315M4，KA169-YVP160M4，KA169-YVP180M4，KA169-YVP200M4，KA169-YVP225M4，KA169-YVP250M4，KA169-YVP280M4，KA169-YVP315M4，KA169-YVPEJ160M4，KA169-YVPEJ180M4，KA169-YVPEJ200M4，KA169-YVPEJ225M4，KA169-YVPEJ250M4，KA169-YVPEJ280M4，KA169-YVPEJ315M4，KA167SF80，KA167SF90，KA167SF100，KA167SF112，KA167SF115，KA167SF140，KA167SF160，KA167SF190。

KA169減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.jinmiba.com/product/list-kaxiliejiansuji-cn.html

推薦類似型號：K169減速機
