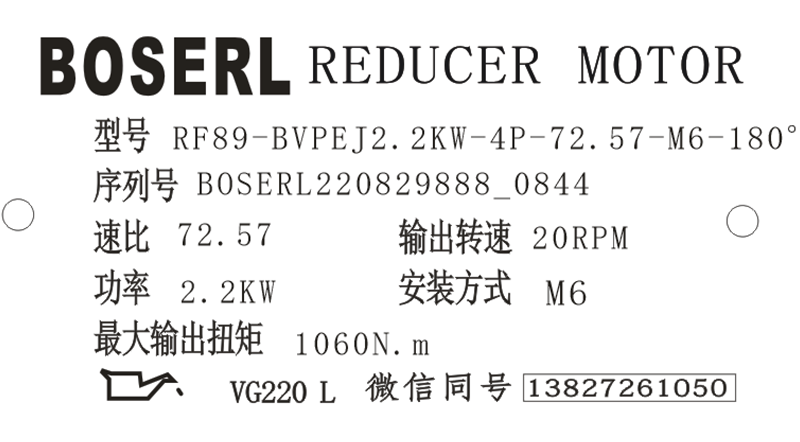

RF89減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的RF89減速器選型樣本。

RF89-BVPEJ2.2KW-4P-72.57-M6-180°

RF：系列代號

89：減速機規格代號

B：電機

VPEJ：變頻剎車電機

2.2KW：電機功率

4P：電機級數

72.57：減速機傳動比

M6：減速機安裝位置

180°：接線盒位置

RF89減速器透氣閥開啟操作教程：

安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動RF89減速器前拆下透氣閥的運輸保險！齒輪減速電機

第一步帶運輸橡膠圈的透氣閥；

第二步拆下運輸橡膠圈；

第三步已經開啟的透氣閥。

RF89減速器安裝操作的正確方法：

RF89減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。立式減速機

RF89減速器的透氣：安裝位置為M1、M3、M5以及M6中的R89、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列RF89減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的RF89減速器，啟動RF89減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。

RF89減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。

RF89減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的RF89減速器選型樣本”）。RF系列減速機

RF89減速器型號：

SRF87-AM100M4，SRF87-AM112M4，SRF87-AM132M4，SRF87-AM160M4，SRF87-AM180M4，SRF87-AM200M4，SRF87-AM71M4，SRF87-AM80M4，SRF87-AM90M4，SRF87-Y0.37KW，SRF87-Y0.55KW，SRF87-Y0.75KW，SRF87-Y1.1KW，SRF87-Y1.5KW，SRF87-Y100M4，SRF87-Y112M4，SRF87-Y11KW，SRF87-Y132M4，SRF87-Y15KW，SRF87-Y160M4，SRF87-Y18.5KW，SRF87-Y180M4，SRF87-Y2.2KW，SRF87-Y200M4，SRF87-Y22KW，SRF87-Y30KW，SRF87-Y3KW，SRF87-Y4KW，SRF87-Y5.5KW，SRF87-Y7.5KW，SRF87-Y71M4，SRF87-Y80M4，SRF87-Y90M4，SRF87-YB100M4，SRF87-YB112M4，SRF87-YB132M4，SRF87-YB160M4，SRF87-YB180M4，SRF87-YB200M4，SRF87-YB71M4，SRF87-YB80M4，SRF87-YB90M4，SRF87-YDP100M4，SRF87-YDP112M4，SRF87-YDP132M4，SRF87-YDP160M4，SRF87-YDP180M4，SRF87-YDP200M4，SRF87-YDP71M4，SRF87-YDP80M4，SRF87-YDP90M4，SRF87-YE100M4，SRF87-YE112M4，SRF87-YE132M4，SRF87-YE160M4，SRF87-YE180M4，SRF87-YE200M4，SRF87-YE71M4，SRF87-YE80M4，SRF87-YE90M4，SRF87-YEJ100M4，SRF87-YEJ112M4，SRF87-YEJ132M4，SRF87-YEJ160M4，SRF87-YEJ180M4，SRF87-YEJ200M4，SRF87-YEJ71M4，SRF87-YEJ80M4，SRF87-YEJ90M4，SRF87-YEJB100M4，SRF87-YEJB112M4，SRF87-YEJB132M4，SRF87-YEJB160M4，SRF87-YEJB180M4，SRF87-YEJB200M4，SRF87-YEJB71M4，SRF87-YEJB80M4，SRF87-YEJB90M4，SRF87-YP100M4，SRF87-YP112M4，SRF87-YP132M4，SRF87-YP160M4，SRF87-YP180M4，SRF87-YP200M4，SRF87-YP71M4，SRF87-YP80M4，SRF87-YP90M4，SRF87-YPB100M4，SRF87-YPB112M4，SRF87-YPB132M4，SRF87-YPB160M4，SRF87-YPB180M4，SRF87-YPB200M4，SRF87-YPB71M4，SRF87-YPB80M4，SRF87-YPB90M4，SRF87-YPE100M4，SRF87-YPE112M4，SRF87-YPE132M4，SRF87-YPE160M4，SRF87-YPE180M4，SRF87-YPE200M4，SRF87-YPE71M4，SRF87-YPE80M4，SRF87-YPE90M4，SRF87-YS100M4，SRF87-YS112M4，SRF87-YS132M4，SRF87-YS160M4，SRF87-YS180M4，SRF87-YS200M4，SRF87-YS71M4，SRF87-YS80M4，SRF87-YS90M4，SRF87-YVB100M4，SRF87-YVB112M4，SRF87-YVB132M4，SRF87-YVB160M4，SRF87-YVB180M4，SRF87-YVB200M4，SRF87-YVB71M4，SRF87-YVB80M4，SRF87-YVB90M4，SRF87-YVP100M4，SRF87-YVP112M4，SRF87-YVP132M4，SRF87-YVP160M4，SRF87-YVP180M4，SRF87-YVP200M4，SRF87-YVP71M4，SRF87-YVP80M4，SRF87-YVP90M4，SRF87-YVPEJ100M4，SRF87-YVPEJ112M4，SRF87-YVPEJ132M4，SRF87-YVPEJ160M4，SRF87-YVPEJ180M4，SRF87-YVPEJ200M4，SRF87-YVPEJ71M4，SRF87-YVPEJ80M4，SRF87-YVPEJ90M4，NRF87-AM100M4，NRF87-AM112M4，NRF87-AM132M4，NRF87-AM160M4，NRF87-AM180M4，NRF87-AM200M4，NRF87-AM71M4，NRF87-AM80M4，NRF87-AM90M4，NRF87-Y0.37KW，NRF87-Y0.55KW，NRF87-Y0.75KW，NRF87-Y1.1KW，NRF87-Y1.5KW，NRF87-Y100M4，NRF87-Y112M4，NRF87-Y11KW，NRF87-Y132M4，NRF87-Y15KW，NRF87-Y160M4，NRF87-Y18.5KW，NRF87-Y180M4，NRF87-Y2.2KW，NRF87-Y200M4，NRF87-Y22KW，NRF87-Y30KW，NRF87-Y3KW，NRF87-Y4KW，NRF87-Y5.5KW，NRF87-Y7.5KW，NRF87-Y71M4，NRF87-Y80M4，NRF87-Y90M4，NRF87-YB100M4，NRF87-YB112M4，NRF87-YB132M4，NRF87-YB160M4，NRF87-YB180M4，NRF87-YB200M4，NRF87-YB71M4，NRF87-YB80M4，NRF87-YB90M4，NRF87-YDP100M4，NRF87-YDP112M4，NRF87-YDP132M4，NRF87-YDP160M4，NRF87-YDP180M4，NRF87-YDP200M4，NRF87-YDP71M4，NRF87-YDP80M4，NRF87-YDP90M4，NRF87-YE100M4，NRF87-YE112M4，NRF87-YE132M4，NRF87-YE160M4，NRF87-YE180M4，NRF87-YE200M4，NRF87-YE71M4，NRF87-YE80M4，NRF87-YE90M4，NRF87-YEJ100M4，NRF87-YEJ112M4，NRF87-YEJ132M4，NRF87-YEJ160M4，NRF87-YEJ180M4，NRF87-YEJ200M4，NRF87-YEJ71M4，NRF87-YEJ80M4，NRF87-YEJ90M4，NRF87-YEJB100M4，NRF87-YEJB112M4，NRF87-YEJB132M4，NRF87-YEJB160M4，NRF87-YEJB180M4，NRF87-YEJB200M4，NRF87-YEJB71M4，NRF87-YEJB80M4，NRF87-YEJB90M4，NRF87-YP100M4，NRF87-YP112M4，NRF87-YP132M4，NRF87-YP160M4，NRF87-YP180M4，NRF87-YP200M4，NRF87-YP71M4，NRF87-YP80M4，NRF87-YP90M4，NRF87-YPB100M4，NRF87-YPB112M4，NRF87-YPB132M4，NRF87-YPB160M4，NRF87-YPB180M4，NRF87-YPB200M4，NRF87-YPB71M4，NRF87-YPB80M4，NRF87-YPB90M4，NRF87-YPE100M4，NRF87-YPE112M4，NRF87-YPE132M4，NRF87-YPE160M4，NRF87-YPE180M4，NRF87-YPE200M4，NRF87-YPE71M4，NRF87-YPE80M4，NRF87-YPE90M4，NRF87-YS100M4，NRF87-YS112M4，NRF87-YS132M4，NRF87-YS160M4，NRF87-YS180M4，NRF87-YS200M4，NRF87-YS71M4，NRF87-YS80M4，NRF87-YS90M4，NRF87-YVB100M4，NRF87-YVB112M4，NRF87-YVB132M4，NRF87-YVB160M4，NRF87-YVB180M4，NRF87-YVB200M4，NRF87-YVB71M4，NRF87-YVB80M4，NRF87-YVB90M4，NRF87-YVP100M4，NRF87-YVP112M4，NRF87-YVP132M4，NRF87-YVP160M4，NRF87-YVP180M4，NRF87-YVP200M4，NRF87-YVP71M4，NRF87-YVP80M4，NRF87-YVP90M4，NRF87-YVPEJ100M4，NRF87-YVPEJ112M4，NRF87-YVPEJ132M4，NRF87-YVPEJ160M4，NRF87-YVPEJ180M4，NRF87-YVPEJ200M4，NRF87-YVPEJ71M4，NRF87-YVPEJ80M4，NRF87-YVPEJ90M4，GRF89-AM100M4，GRF89-AM112M4，GRF89-AM132M4，GRF89-AM160M4，GRF89-AM180M4，GRF89-AM200M4，GRF89-AM71M4，GRF89-AM80M4，GRF89-AM90M4，GRF89-Y0.37KW，GRF89-Y0.55KW，GRF89-Y0.75KW，GRF89-Y1.1KW，GRF89-Y1.5KW，GRF89-Y100M4，GRF89-Y112M4，GRF89-Y11KW，GRF89-Y132M4，GRF89-Y15KW，GRF89-Y160M4，GRF89-Y18.5KW，GRF89-Y180M4，GRF89-Y2.2KW，GRF89-Y200M4，GRF89-Y22KW，GRF89-Y30KW，GRF89-Y3KW，GRF89-Y4KW，GRF89-Y5.5KW，GRF89-Y7.5KW，GRF89-Y71M4，GRF89-Y80M4，GRF89-Y90M4，GRF89-YB100M4，GRF89-YB112M4，GRF89-YB132M4，GRF89-YB160M4，GRF89-YB180M4，GRF89-YB200M4，GRF89-YB71M4，GRF89-YB80M4，GRF89-YB90M4，GRF89-YDP100M4，GRF89-YDP112M4，GRF89-YDP132M4，GRF89-YDP160M4，GRF89-YDP180M4，GRF89-YDP200M4，GRF89-YDP71M4，GRF89-YDP80M4，GRF89-YDP90M4，GRF89-YE100M4，GRF89-YE112M4，GRF89-YE132M4，GRF89-YE160M4，GRF89-YE180M4，GRF89-YE200M4，GRF89-YE71M4，GRF89-YE80M4，GRF89-YE90M4，GRF89-YEJ100M4，GRF89-YEJ112M4，GRF89-YEJ132M4，GRF89-YEJ160M4，GRF89-YEJ180M4，GRF89-YEJ200M4，GRF89-YEJ71M4，GRF89-YEJ80M4，GRF89-YEJ90M4，GRF89-YEJB100M4，GRF89-YEJB112M4，GRF89-YEJB132M4，GRF89-YEJB160M4，GRF89-YEJB180M4，GRF89-YEJB200M4，GRF89-YEJB71M4，GRF89-YEJB80M4，GRF89-YEJB90M4，GRF89-YP100M4，GRF89-YP112M4，GRF89-YP132M4，GRF89-YP160M4，GRF89-YP180M4，GRF89-YP200M4，GRF89-YP71M4，GRF89-YP80M4，GRF89-YP90M4，GRF89-YPB100M4，GRF89-YPB112M4，GRF89-YPB132M4，GRF89-YPB160M4，GRF89-YPB180M4，GRF89-YPB200M4，GRF89-YPB71M4，GRF89-YPB80M4，GRF89-YPB90M4，GRF89-YPE100M4，GRF89-YPE112M4，GRF89-YPE132M4，GRF89-YPE160M4，GRF89-YPE180M4，GRF89-YPE200M4，GRF89-YPE71M4，GRF89-YPE80M4，GRF89-YPE90M4，GRF89-YS100M4，GRF89-YS112M4，GRF89-YS132M4，GRF89-YS160M4，GRF89-YS180M4，GRF89-YS200M4，GRF89-YS71M4，GRF89-YS80M4，GRF89-YS90M4，GRF89-YVB100M4，GRF89-YVB112M4，GRF89-YVB132M4，GRF89-YVB160M4，GRF89-YVB180M4，GRF89-YVB200M4，GRF89-YVB71M4，GRF89-YVB80M4，GRF89-YVB90M4，GRF89-YVP100M4，GRF89-YVP112M4，GRF89-YVP132M4，GRF89-YVP160M4，GRF89-YVP180M4，GRF89-YVP200M4，GRF89-YVP71M4，GRF89-YVP80M4，GRF89-YVP90M4，GRF89-YVPEJ100M4，GRF89-YVPEJ112M4，GRF89-YVPEJ132M4，GRF89-YVPEJ160M4，GRF89-YVPEJ180M4，GRF89-YVPEJ200M4，GRF89-YVPEJ71M4，GRF89-YVPEJ80M4，GRF89-YVPEJ90M4，ARF87-AM100M4，ARF87-AM112M4，ARF87-AM132M4，ARF87-AM160M4，ARF87-AM180M4，ARF87-AM200M4，ARF87-AM71M4，ARF87-AM80M4，ARF87-AM90M4，ARF87-Y0.37KW，ARF87-Y0.55KW，ARF87-Y0.75KW，ARF87-Y1.1KW，ARF87-Y1.5KW，ARF87-Y100M4，ARF87-Y112M4，ARF87-Y11KW，ARF87-Y132M4，ARF87-Y15KW，ARF87-Y160M4，ARF87-Y18.5KW，ARF87-Y180M4，ARF87-Y2.2KW，ARF87-Y200M4，ARF87-Y22KW，ARF87-Y30KW，ARF87-Y3KW，ARF87-Y4KW，ARF87-Y5.5KW，ARF87-Y7.5KW，ARF87-Y71M4，ARF87-Y80M4，ARF87-Y90M4，ARF87-YB100M4，ARF87-YB112M4，ARF87-YB132M4，ARF87-YB160M4，ARF87-YB180M4，ARF87-YB200M4，ARF87-YB71M4，ARF87-YB80M4，ARF87-YB90M4，ARF87-YDP100M4，ARF87-YDP112M4，ARF87-YDP132M4，ARF87-YDP160M4，ARF87-YDP180M4，ARF87-YDP200M4，ARF87-YDP71M4，ARF87-YDP80M4，ARF87-YDP90M4，ARF87-YE100M4，ARF87-YE112M4，ARF87-YE132M4，ARF87-YE160M4，ARF87-YE180M4，ARF87-YE200M4，ARF87-YE71M4，ARF87-YE80M4，ARF87-YE90M4，ARF87-YEJ100M4，ARF87-YEJ112M4，ARF87-YEJ132M4，ARF87-YEJ160M4，ARF87-YEJ180M4，ARF87-YEJ200M4，ARF87-YEJ71M4，ARF87-YEJ80M4，ARF87-YEJ90M4，ARF87-YEJB100M4，ARF87-YEJB112M4，ARF87-YEJB132M4，ARF87-YEJB160M4，ARF87-YEJB180M4，ARF87-YEJB200M4，ARF87-YEJB71M4，ARF87-YEJB80M4，ARF87-YEJB90M4，ARF87-YP100M4，ARF87-YP112M4，ARF87-YP132M4，ARF87-YP160M4，ARF87-YP180M4，ARF87-YP200M4，ARF87-YP71M4，ARF87-YP80M4，ARF87-YP90M4，ARF87-YPB100M4，ARF87-YPB112M4，ARF87-YPB132M4，ARF87-YPB160M4，ARF87-YPB180M4，ARF87-YPB200M4，ARF87-YPB71M4，ARF87-YPB80M4，ARF87-YPB90M4，ARF87-YPE100M4，ARF87-YPE112M4，ARF87-YPE132M4，ARF87-YPE160M4，ARF87-YPE180M4，ARF87-YPE200M4，ARF87-YPE71M4，ARF87-YPE80M4，ARF87-YPE90M4，ARF87-YS100M4，ARF87-YS112M4，ARF87-YS132M4，ARF87-YS160M4，ARF87-YS180M4，ARF87-YS200M4，ARF87-YS71M4，ARF87-YS80M4，ARF87-YS90M4，ARF87-YVB100M4，ARF87-YVB112M4，ARF87-YVB132M4，ARF87-YVB160M4，ARF87-YVB180M4，ARF87-YVB200M4，ARF87-YVB71M4，ARF87-YVB80M4，ARF87-YVB90M4，ARF87-YVP100M4，ARF87-YVP112M4，ARF87-YVP132M4，ARF87-YVP160M4，ARF87-YVP180M4，ARF87-YVP200M4，ARF87-YVP71M4，ARF87-YVP80M4，ARF87-YVP90M4，ARF87-YVPEJ100M4，ARF87-YVPEJ112M4，ARF87-YVPEJ132M4，ARF87-YVPEJ160M4，ARF87-YVPEJ180M4，ARF87-YVPEJ200M4，ARF87-YVPEJ71M4，ARF87-YVPEJ80M4，ARF87-YVPEJ90M4，WRF87-AM100M4，WRF87-AM112M4，WRF87-AM132M4，WRF87-AM160M4，WRF87-AM180M4，WRF87-AM200M4，WRF87-AM71M4，WRF87-AM80M4，WRF87-AM90M4，WRF87-Y0.37KW，WRF87-Y0.55KW，WRF87-Y0.75KW，WRF87-Y1.1KW，WRF87-Y1.5KW，WRF87-Y100M4，WRF87-Y112M4，WRF87-Y11KW，WRF87-Y132M4，WRF87-Y15KW，WRF87-Y160M4，WRF87-Y18.5KW，WRF87-Y180M4，WRF87-Y2.2KW，WRF87-Y200M4，WRF87-Y22KW，WRF87-Y30KW，WRF87-Y3KW，WRF87-Y4KW，WRF87-Y5.5KW，WRF87-Y7.5KW，WRF87-Y71M4，WRF87-Y80M4，WRF87-Y90M4，WRF87-YB100M4，WRF87-YB112M4，WRF87-YB132M4，WRF87-YB160M4，WRF87-YB180M4，WRF87-YB200M4，WRF87-YB71M4，WRF87-YB80M4，WRF87-YB90M4，WRF87-YDP100M4，WRF87-YDP112M4，WRF87-YDP132M4，WRF87-YDP160M4，WRF87-YDP180M4，WRF87-YDP200M4，WRF87-YDP71M4，WRF87-YDP80M4，WRF87-YDP90M4，WRF87-YE100M4，WRF87-YE112M4，WRF87-YE132M4，WRF87-YE160M4，WRF87-YE180M4，WRF87-YE200M4，WRF87-YE71M4，WRF87-YE80M4，WRF87-YE90M4，WRF87-YEJ100M4，WRF87-YEJ112M4，WRF87-YEJ132M4，WRF87-YEJ160M4，WRF87-YEJ180M4，WRF87-YEJ200M4，WRF87-YEJ71M4，WRF87-YEJ80M4，WRF87-YEJ90M4，WRF87-YEJB100M4，WRF87-YEJB112M4，WRF87-YEJB132M4，WRF87-YEJB160M4，WRF87-YEJB180M4，WRF87-YEJB200M4，WRF87-YEJB71M4，WRF87-YEJB80M4，WRF87-YEJB90M4，WRF87-YP100M4，WRF87-YP112M4，WRF87-YP132M4，WRF87-YP160M4，WRF87-YP180M4，WRF87-YP200M4，WRF87-YP71M4，WRF87-YP80M4，WRF87-YP90M4，WRF87-YPB100M4，WRF87-YPB112M4，WRF87-YPB132M4，WRF87-YPB160M4，WRF87-YPB180M4，WRF87-YPB200M4，WRF87-YPB71M4，WRF87-YPB80M4，WRF87-YPB90M4，WRF87-YPE100M4，WRF87-YPE112M4，WRF87-YPE132M4，WRF87-YPE160M4，WRF87-YPE180M4，WRF87-YPE200M4，WRF87-YPE71M4，WRF87-YPE80M4，WRF87-YPE90M4，WRF87-YS100M4，WRF87-YS112M4，WRF87-YS132M4，WRF87-YS160M4，WRF87-YS180M4，WRF87-YS200M4，WRF87-YS71M4，WRF87-YS80M4，WRF87-YS90M4，WRF87-YVB100M4，WRF87-YVB112M4，WRF87-YVB132M4，WRF87-YVB160M4，WRF87-YVB180M4，WRF87-YVB200M4，WRF87-YVB71M4，WRF87-YVB80M4，WRF87-YVB90M4，WRF87-YVP100M4，WRF87-YVP112M4，WRF87-YVP132M4，WRF87-YVP160M4，WRF87-YVP180M4，WRF87-YVP200M4，WRF87-YVP71M4，WRF87-YVP80M4，WRF87-YVP90M4，WRF87-YVPEJ100M4，WRF87-YVPEJ112M4，WRF87-YVPEJ132M4，WRF87-YVPEJ160M4，WRF87-YVPEJ180M4，WRF87-YVPEJ200M4，WRF87-YVPEJ71M4，WRF87-YVPEJ80M4，WRF87-YVPEJ90M4，RF87SF80，RF87SF90，RF87SF100，RF87SF112，RF87SF115，RF87SF140，RF87SF160，RF87SF190。

RF89減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.jinmiba.com/product/list-rfxiliejiansuji-cn.html

推薦類似型號：R89減速機
