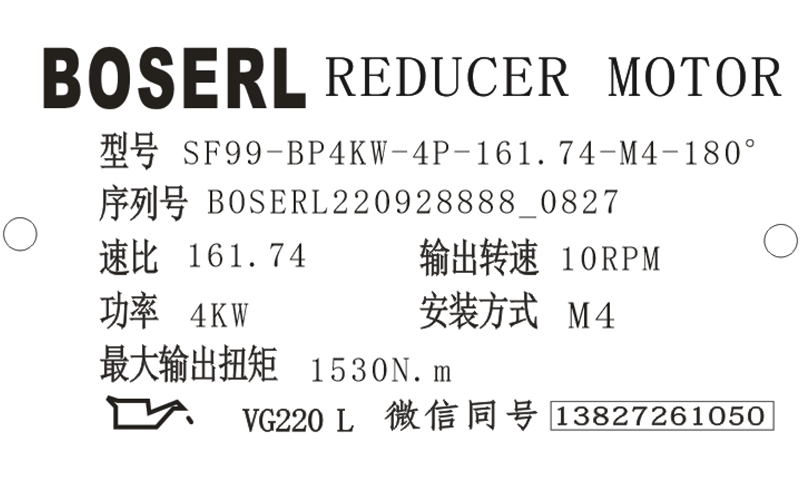

SF99減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SF99減速器選型樣本。

SF99-BP4KW-4P-161.74-M4-180°

SF：系列代號

99：減速機規格代號

BP：電機

4KW：電機功率

4P：電機級數

161.74：減速機傳動比

M4：減速機安裝位置

180°：接線盒位置

SF99減速器透氣閥開啟操作教程：

安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動SF99減速器前拆下透氣閥的運輸保險！齒輪減速電機

第一步帶運輸橡膠圈的透氣閥；

第二步拆下運輸橡膠圈；

第三步已經開啟的透氣閥。

SF99減速器安裝操作的正確方法：

SF99減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的SF99減速器選型樣本”）。自鎖減速機

SF99減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。

SF99減速器的透氣：安裝位置為M1、M3、M5以及M6中的R19、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列SF99減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的SF99減速器，啟動SF99減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。伺服電機蝸輪蝸桿減速機

SF99減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。

SF99減速器型號：

WSF97-Y1.1KW，WSF97-Y1.5KW，WSF97-Y100M4，WSF97-Y112M4，WSF97-Y11KW，WSF97-Y132M4，WSF97-Y15KW，WSF97-Y160M4，WSF97-Y18.5KW，WSF97-Y180M4，WSF97-Y2.2KW，WSF97-Y200M4，WSF97-Y22KW，WSF97-Y3KW，WSF97-Y4KW，WSF97-Y5.5KW，WSF97-Y7.5KW，WSF97-Y80M4，WSF97-Y90M4，WSF97-YB100M4，WSF97-YB112M4，WSF97-YB132M4，WSF97-YB160M4，WSF97-YB180M4，WSF97-YB200M4，WSF97-YB80M4，WSF97-YB90M4，WSF97-YDP100M4，WSF97-YDP112M4，WSF97-YDP132M4，WSF97-YDP160M4，WSF97-YDP180M4，WSF97-YDP200M4，WSF97-YDP80M4，WSF97-YDP90M4，WSF97-YE100M4，WSF97-YE112M4，WSF97-YE132M4，WSF97-YE160M4，WSF97-YE180M4，WSF97-YE200M4，WSF97-YE80M4，WSF97-YE90M4，WSF97-YEJ100M4，WSF97-YEJ112M4，WSF97-YEJ132M4，WSF97-YEJ160M4，WSF97-YEJ180M4，WSF97-YEJ200M4，WSF97-YEJ80M4，WSF97-YEJ90M4，WSF97-YEJB100M4，WSF97-YEJB112M4，WSF97-YEJB132M4，WSF97-YEJB160M4，WSF97-YEJB180M4，WSF97-YEJB200M4，WSF97-YEJB80M4，WSF97-YEJB90M4，WSF97-YP100M4，WSF97-YP112M4，WSF97-YP132M4，WSF97-YP160M4，WSF97-YP180M4，WSF97-YP200M4，WSF97-YP80M4，WSF97-YP90M4，WSF97-YPB100M4，WSF97-YPB112M4，WSF97-YPB132M4，WSF97-YPB160M4，WSF97-YPB180M4，WSF97-YPB200M4，WSF97-YPB80M4，WSF97-YPB90M4，WSF97-YPE100M4，WSF97-YPE112M4，WSF97-YPE132M4，WSF97-YPE160M4，WSF97-YPE180M4，WSF97-YPE200M4，WSF97-YPE80M4，WSF97-YPE90M4，WSF97-YS100M4，WSF97-YS112M4，WSF97-YS132M4，WSF97-YS160M4，WSF97-YS180M4，WSF97-YS200M4，WSF97-YS80M4，WSF97-YS90M4，WSF97-YVB100M4，WSF97-YVB112M4，WSF97-YVB132M4，WSF97-YVB160M4，WSF97-YVB180M4，WSF97-YVB200M4，WSF97-YVB80M4，WSF97-YVB90M4，WSF97-YVP100M4，WSF97-YVP112M4，WSF97-YVP132M4，WSF97-YVP160M4，WSF97-YVP180M4，WSF97-YVP200M4，WSF97-YVP80M4，WSF97-YVP90M4，WSF97-YVPEJ100M4，WSF97-YVPEJ112M4，WSF97-YVPEJ132M4，WSF97-YVPEJ160M4，WSF97-YVPEJ180M4，WSF97-YVPEJ200M4，WSF97-YVPEJ80M4，WSF97-YVPEJ90M4，NSF97-Y1.1KW，NSF97-Y1.5KW，NSF97-Y100M4，NSF97-Y112M4，NSF97-Y11KW，NSF97-Y132M4，NSF97-Y15KW，NSF97-Y160M4，NSF97-Y18.5KW，NSF97-Y180M4，NSF97-Y2.2KW，NSF97-Y200M4，NSF97-Y22KW，NSF97-Y3KW，NSF97-Y4KW，NSF97-Y5.5KW，NSF97-Y7.5KW，NSF97-Y80M4，NSF97-Y90M4，NSF97-YB100M4，NSF97-YB112M4，NSF97-YB132M4，NSF97-YB160M4，NSF97-YB180M4，NSF97-YB200M4，NSF97-YB80M4，NSF97-YB90M4，NSF97-YDP100M4，NSF97-YDP112M4，NSF97-YDP132M4，NSF97-YDP160M4，NSF97-YDP180M4，NSF97-YDP200M4，NSF97-YDP80M4，NSF97-YDP90M4，NSF97-YE100M4，NSF97-YE112M4，NSF97-YE132M4，NSF97-YE160M4，NSF97-YE180M4，NSF97-YE200M4，NSF97-YE80M4，NSF97-YE90M4，NSF97-YEJ100M4，NSF97-YEJ112M4，NSF97-YEJ132M4，NSF97-YEJ160M4，NSF97-YEJ180M4，NSF97-YEJ200M4，NSF97-YEJ80M4，NSF97-YEJ90M4，NSF97-YEJB100M4，NSF97-YEJB112M4，NSF97-YEJB132M4，NSF97-YEJB160M4，NSF97-YEJB180M4，NSF97-YEJB200M4，NSF97-YEJB80M4，NSF97-YEJB90M4，NSF97-YP100M4，NSF97-YP112M4，NSF97-YP132M4，NSF97-YP160M4，NSF97-YP180M4，NSF97-YP200M4，NSF97-YP80M4，NSF97-YP90M4，NSF97-YPB100M4，NSF97-YPB112M4，NSF97-YPB132M4，NSF97-YPB160M4，NSF97-YPB180M4，NSF97-YPB200M4，NSF97-YPB80M4，NSF97-YPB90M4，NSF97-YPE100M4，NSF97-YPE112M4，NSF97-YPE132M4，NSF97-YPE160M4，NSF97-YPE180M4，NSF97-YPE200M4，NSF97-YPE80M4，NSF97-YPE90M4，NSF97-YS100M4，NSF97-YS112M4，NSF97-YS132M4，NSF97-YS160M4，NSF97-YS180M4，NSF97-YS200M4，NSF97-YS80M4，NSF97-YS90M4，NSF97-YVB100M4，NSF97-YVB112M4，NSF97-YVB132M4，NSF97-YVB160M4，NSF97-YVB180M4，NSF97-YVB200M4，NSF97-YVB80M4，NSF97-YVB90M4，NSF97-YVP100M4，NSF97-YVP112M4，NSF97-YVP132M4，NSF97-YVP160M4，NSF97-YVP180M4，NSF97-YVP200M4，NSF97-YVP80M4，NSF97-YVP90M4，NSF97-YVPEJ100M4，NSF97-YVPEJ112M4，NSF97-YVPEJ132M4，NSF97-YVPEJ160M4，NSF97-YVPEJ180M4，NSF97-YVPEJ200M4，NSF97-YVPEJ80M4，NSF97-YVPEJ90M4，ASF97-Y1.1KW，ASF97-Y1.5KW，ASF97-Y100M4，ASF97-Y112M4，ASF97-Y11KW，ASF97-Y132M4，ASF97-Y15KW，ASF97-Y160M4，ASF97-Y18.5KW，ASF97-Y180M4，ASF97-Y2.2KW，ASF97-Y200M4，ASF97-Y22KW，ASF97-Y3KW，ASF97-Y4KW，ASF97-Y5.5KW，ASF97-Y7.5KW，ASF97-Y80M4，ASF97-Y90M4，ASF97-YB100M4，ASF97-YB112M4，ASF97-YB132M4，ASF97-YB160M4，ASF97-YB180M4，ASF97-YB200M4，ASF97-YB80M4，ASF97-YB90M4，ASF97-YDP100M4，ASF97-YDP112M4，ASF97-YDP132M4，ASF97-YDP160M4，ASF97-YDP180M4，ASF97-YDP200M4，ASF97-YDP80M4，ASF97-YDP90M4，ASF97-YE100M4，ASF97-YE112M4，ASF97-YE132M4，ASF97-YE160M4，ASF97-YE180M4，ASF97-YE200M4，ASF97-YE80M4，ASF97-YE90M4，ASF97-YEJ100M4，ASF97-YEJ112M4，ASF97-YEJ132M4，ASF97-YEJ160M4，ASF97-YEJ180M4，ASF97-YEJ200M4，ASF97-YEJ80M4，ASF97-YEJ90M4，ASF97-YEJB100M4，ASF97-YEJB112M4，ASF97-YEJB132M4，ASF97-YEJB160M4，ASF97-YEJB180M4，ASF97-YEJB200M4，ASF97-YEJB80M4，ASF97-YEJB90M4，ASF97-YP100M4，ASF97-YP112M4，ASF97-YP132M4，ASF97-YP160M4，ASF97-YP180M4，ASF97-YP200M4，ASF97-YP80M4，ASF97-YP90M4，ASF97-YPB100M4，ASF97-YPB112M4，ASF97-YPB132M4，ASF97-YPB160M4，ASF97-YPB180M4，ASF97-YPB200M4，ASF97-YPB80M4，ASF97-YPB90M4，ASF97-YPE100M4，ASF97-YPE112M4，ASF97-YPE132M4，ASF97-YPE160M4，ASF97-YPE180M4，ASF97-YPE200M4，ASF97-YPE80M4，ASF97-YPE90M4，ASF97-YS100M4，ASF97-YS112M4，ASF97-YS132M4，ASF97-YS160M4，ASF97-YS180M4，ASF97-YS200M4，ASF97-YS80M4，ASF97-YS90M4，ASF97-YVB100M4，ASF97-YVB112M4，ASF97-YVB132M4，ASF97-YVB160M4，ASF97-YVB180M4，ASF97-YVB200M4，ASF97-YVB80M4，ASF97-YVB90M4，ASF97-YVP100M4，ASF97-YVP112M4，ASF97-YVP132M4，ASF97-YVP160M4，ASF97-YVP180M4，ASF97-YVP200M4，ASF97-YVP80M4，ASF97-YVP90M4，ASF97-YVPEJ100M4，ASF97-YVPEJ112M4，ASF97-YVPEJ132M4，ASF97-YVPEJ160M4，ASF97-YVPEJ180M4，ASF97-YVPEJ200M4，ASF97-YVPEJ80M4，ASF97-YVPEJ90M4，SSF97-Y1.1KW，SSF97-Y1.5KW，SSF97-Y100M4，SSF97-Y112M4，SSF97-Y11KW，SSF97-Y132M4，SSF97-Y15KW，SSF97-Y160M4，SSF97-Y18.5KW，SSF97-Y180M4，SSF97-Y2.2KW，SSF97-Y200M4，SSF97-Y22KW，SSF97-Y3KW，SSF97-Y4KW，SSF97-Y5.5KW，SSF97-Y7.5KW，SSF97-Y80M4，SSF97-Y90M4，SSF97-YB100M4，SSF97-YB112M4，SSF97-YB132M4，SSF97-YB160M4，SSF97-YB180M4，SSF97-YB200M4，SSF97-YB80M4，SSF97-YB90M4，SSF97-YDP100M4，SSF97-YDP112M4，SSF97-YDP132M4，SSF97-YDP160M4，SSF97-YDP180M4，SSF97-YDP200M4，SSF97-YDP80M4，SSF97-YDP90M4，SSF97-YE100M4，SSF97-YE112M4，SSF97-YE132M4，SSF97-YE160M4，SSF97-YE180M4，SSF97-YE200M4，SSF97-YE80M4，SSF97-YE90M4，SSF97-YEJ100M4，SSF97-YEJ112M4，SSF97-YEJ132M4，SSF97-YEJ160M4，SSF97-YEJ180M4，SSF97-YEJ200M4，SSF97-YEJ80M4，SSF97-YEJ90M4，SSF97-YEJB100M4，SSF97-YEJB112M4，SSF97-YEJB132M4，SSF97-YEJB160M4，SSF97-YEJB180M4，SSF97-YEJB200M4，SSF97-YEJB80M4，SSF97-YEJB90M4，SSF97-YP100M4，SSF97-YP112M4，SSF97-YP132M4，SSF97-YP160M4，SSF97-YP180M4，SSF97-YP200M4，SSF97-YP80M4，SSF97-YP90M4，SSF97-YPB100M4，SSF97-YPB112M4，SSF97-YPB132M4，SSF97-YPB160M4，SSF97-YPB180M4，SSF97-YPB200M4，SSF97-YPB80M4，SSF97-YPB90M4，SSF97-YPE100M4，SSF97-YPE112M4，SSF97-YPE132M4，SSF97-YPE160M4，SSF97-YPE180M4，SSF97-YPE200M4，SSF97-YPE80M4，SSF97-YPE90M4，SSF97-YS100M4，SSF97-YS112M4，SSF97-YS132M4，SSF97-YS160M4，SSF97-YS180M4，SSF97-YS200M4，SSF97-YS80M4，SSF97-YS90M4，SSF97-YVB100M4，SSF97-YVB112M4，SSF97-YVB132M4，SSF97-YVB160M4，SSF97-YVB180M4，SSF97-YVB200M4，SSF97-YVB80M4，SSF97-YVB90M4，SSF97-YVP100M4，SSF97-YVP112M4，SSF97-YVP132M4，SSF97-YVP160M4，SSF97-YVP180M4，SSF97-YVP200M4，SSF97-YVP80M4，SSF97-YVP90M4，SSF97-YVPEJ100M4，SSF97-YVPEJ112M4，SSF97-YVPEJ132M4，SSF97-YVPEJ160M4，SSF97-YVPEJ180M4，SSF97-YVPEJ200M4，SSF97-YVPEJ80M4，SSF97-YVPEJ90M4，GSF99-Y1.1KW，GSF99-Y1.5KW，GSF99-Y100M4，GSF99-Y112M4，GSF99-Y11KW，GSF99-Y132M4，GSF99-Y15KW，GSF99-Y160M4，GSF99-Y18.5KW，GSF99-Y180M4，GSF99-Y2.2KW，GSF99-Y200M4，GSF99-Y22KW，GSF99-Y3KW，GSF99-Y4KW，GSF99-Y5.5KW，GSF99-Y7.5KW，GSF99-Y80M4，GSF99-Y90M4，GSF99-YB100M4，GSF99-YB112M4，GSF99-YB132M4，GSF99-YB160M4，GSF99-YB180M4，GSF99-YB200M4，GSF99-YB80M4，GSF99-YB90M4，GSF99-YDP100M4，GSF99-YDP112M4，GSF99-YDP132M4，GSF99-YDP160M4，GSF99-YDP180M4，GSF99-YDP200M4，GSF99-YDP80M4，GSF99-YDP90M4，GSF99-YE100M4，GSF99-YE112M4，GSF99-YE132M4，GSF99-YE160M4，GSF99-YE180M4，GSF99-YE200M4，GSF99-YE80M4，GSF99-YE90M4，GSF99-YEJ100M4，GSF99-YEJ112M4，GSF99-YEJ132M4，GSF99-YEJ160M4，GSF99-YEJ180M4，GSF99-YEJ200M4，GSF99-YEJ80M4，GSF99-YEJ90M4，GSF99-YEJB100M4，GSF99-YEJB112M4，GSF99-YEJB132M4，GSF99-YEJB160M4，GSF99-YEJB180M4，GSF99-YEJB200M4，GSF99-YEJB80M4，GSF99-YEJB90M4，GSF99-YP100M4，GSF99-YP112M4，GSF99-YP132M4，GSF99-YP160M4，GSF99-YP180M4，GSF99-YP200M4，GSF99-YP80M4，GSF99-YP90M4，GSF99-YPB100M4，GSF99-YPB112M4，GSF99-YPB132M4，GSF99-YPB160M4，GSF99-YPB180M4，GSF99-YPB200M4，GSF99-YPB80M4，GSF99-YPB90M4，GSF99-YPE100M4，GSF99-YPE112M4，GSF99-YPE132M4，GSF99-YPE160M4，GSF99-YPE180M4，GSF99-YPE200M4，GSF99-YPE80M4，GSF99-YPE90M4，GSF99-YS100M4，GSF99-YS112M4，GSF99-YS132M4，GSF99-YS160M4，GSF99-YS180M4，GSF99-YS200M4，GSF99-YS80M4，GSF99-YS90M4，GSF99-YVB100M4，GSF99-YVB112M4，GSF99-YVB132M4，GSF99-YVB160M4，GSF99-YVB180M4，GSF99-YVB200M4，GSF99-YVB80M4，GSF99-YVB90M4，GSF99-YVP100M4，GSF99-YVP112M4，GSF99-YVP132M4，GSF99-YVP160M4，GSF99-YVP180M4，GSF99-YVP200M4，GSF99-YVP80M4，GSF99-YVP90M4，GSF99-YVPEJ100M4，GSF99-YVPEJ112M4，GSF99-YVPEJ132M4，GSF99-YVPEJ160M4，GSF99-YVPEJ180M4，GSF99-YVPEJ200M4，GSF99-YVPEJ80M4，GSF99-YVPEJ90M4，SF97SF80，SF97SF90，SF97SF100，SF97SF112，SF97SF115，SF97SF140，SF97SF160，SF97SF190。

SF99減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.jinmiba.com/product/list-sfxiliejiansuji-cn.html

推薦類似型號：S99減速機
