K189R109減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K189R109減速機選型樣本。

K189R109-Y11KW-4P-520-M3-270°

K/R：系列代號

189/109：減速機規格代號

Y：電機

11KW：電機功率

4P：電機級數

520：減速機傳動比

M3：減速機安裝位置

270°：接線盒位置

K189R109減速機電機調試運行：

啟動前的檢查-安裝、接線結束后，接通開關前請檢查以下各點：安裝的斷路器以及過電流繼電器是否合適；接線是否有差錯；接地線是否確實接地。此外，為防范危險于未然，在運轉本減速電機預測有危險的場合，以及無法正常發揮功能的場合，為了防范危險情況，請在裝置側多加考慮預防措施。電壓以及頻率的變動:當施加于電機的電壓和頻率不是規定值時，電機特性將發生變化,請注意。電機電壓在額定電壓上下10%以內變動，電機是可以正常使用的，超過10%，有可能燒毀電機，同時伴有出力扭矩降低或電流大等異常。齒輪減速電機

開始運轉后的性能確認旋轉方向是否正確；電流值是否有超標；是否產生異常振動或噪音；啟動頻率是否過高；是否發生沖擊。若有異常，請按BOSERL減速電機說明書中的“電機故障處理”章節所述步驟執行。

關于帶變頻器的電機運行：若電機同時配有變頻器與電磁制動器，此時制動器的電源應另外設置不可與電機電源并聯使用；當電機配變頻器使用時，建議使用頻率在30-80Hz，將可得到較具實用之性能，且可以長時間運行；若需要更高或更低的轉速，也可以通過調整減速比來實現；當電機使用頻率在30Hz以下或80Hz以上時，與30-80Hz相比，電機溫度將上升，運行噪間/振動將變大，此時電機只能短時間運行，

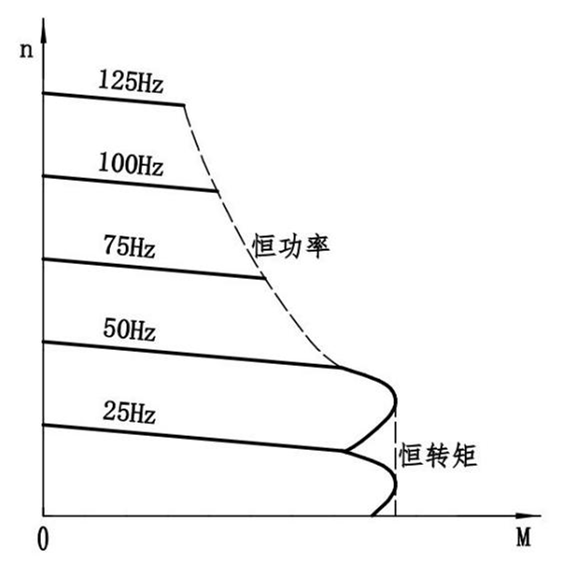

請客戶謹慎使用；變頻電機特性曲線如下圖所示，在6-50Hz的范圍內，為恒轉矩運行，電機可保持連續運轉扭矩與50Hz時的額定扭矩相同(但30Hz以下電機發熱較快，不可長時間運行)；在50-120Hz的范圍內，為恒功率運行，電機可保持連續運轉輸出功率與50Hz時相同(高頻運行時電機轉速高，扭矩等比例降低，且80Hz以上電機發熱較快，不可長時間運行)。本公司變頻三相電機能夠配置變頻器進行變頻調速操作。當在低頻工作區工作時，由于電機轉速的降低而使電機原有設計的風冷系統的冷卻作用降低，電機溫升將會上升。而在高頻區工作時，過高的電機轉速使電機原有冷切風扇消耗更多的功率，增加了風摩損耗，降低了電機的效率，并且大大增加電機的運行噪聲。因此我們建議:在進行變頻操作時電機最好加裝獨立的冷卻風扇。直角減速機

K189R109減速機電機運轉時環境與操作注意點：

危險：在電機或所驅動設備上進行操作前，先切斷電源并鎖定。工作過程中一定要確保無爆炸性氣體存在；請勿在拆下接線盒罩殼的狀態下運轉。接線后，請在原先位置安裝接線盒罩殼。否則有可能會導致觸電。請切實進行安裝；運轉中，請絕對不要接近旋轉體(旋轉軸等)。否則有可能會被卷入，受傷；停電時，請務必切斷電源。否則不知不覺中來電可能會導致受傷、裝置損壞。

注意：運轉中，減速電機的溫度會變得很高。請注意不要觸及手和身體。否則有可能會導致燙傷；發生異常時，請立即停止運轉。否則有可能會導致觸電、受傷、火災。請勿超出額定負載使用。否則有可能會導致受傷、裝置損壞；使電機反轉時，請務必暫停后開始反轉。否則有可能會出現旋轉方向未發生改變的電機失控；電機即使在正常運行狀態，有時表面溫度也會有超過70°C的現象。電機運行時，若有靠近電機的可能請制作"高溫注意”圖標井貼于電機顯眼處；電機反轉時，單相電機按接線圖進行調整，三相電機只需要將電源線兩相對調即可。K系列減速機

K189R109減速電機型號：

YQK187R107-Y112M4，YQK187R107-Y132M4，YQK187R107-Y160M4，YQK187R107-Y180M4，YQK187R107-Y200M4，YQK187R107-Y225M4，YQK187R107-Y250M4，YQK187RF107-Y112M4，YQK187RF107-Y11KW，YQK187RF107-Y132M4，YQK187RF107-Y15KW，YQK187RF107-Y160M4，YQK187RF107-Y18.5KW，YQK187RF107-Y180M4，YQK187RF107-Y200M4，YQK187RF107-Y225M4，YQK187RF107-Y22KW，YQK187RF107-Y250M4，YQK187RF107-Y30KW，YQK187RF107-Y37KW，YQK187RF107-Y45KW，YQK187RF107-Y4KW，YQK187RF107-Y5.5KW，YQK187RF107-Y55KW，YQK187RF107-Y7.5KW，YQK187RF107-YB112M4，YQK187RF107-YB132M4，YQK187RF107-YB160M4，YQK187RF107-YB180M4，YQK187RF107-YB200L4，YQK187RF107-YB225M4，YQK187RF107-YB250M4，YQK187RF107-YDP112M4，YQK187RF107-YDP132M4，YQK187RF107-YDP160M4，YQK187RF107-YDP180M4，YQK187RF107-YDP200L4，YQK187RF107-YDP225M4，YQK187RF107-YDP250M4，YQK187RF107-YE112M4，YQK187RF107-YE132M4，YQK187RF107-YE160M4，YQK187RF107-YE180M4，YQK187RF107-YE200L4，YQK187RF107-YE225M4，YQK187RF107-YE250M4，YQK187RF107-YEJ112M4，YQK187RF107-YEJ132M4，YQK187RF107-YEJ160M4，YQK187RF107-YEJ180M4，YQK187RF107-YEJ200L4，YQK187RF107-YEJ225M4，YQK187RF107-YEJ250M4，YQK187RF107-YEJB112M4，YQK187RF107-YEJB132M4，YQK187RF107-YEJB160M4，YQK187RF107-YEJB180M4，YQK187RF107-YEJB200L4，YQK187RF107-YEJB225M4，YQK187RF107-YEJB250M4，YQK187RF107-YP112M4，YQK187RF107-YP132M4，YQK187RF107-YP160M4，YQK187RF107-YP180M4，YQK187RF107-YP200L4，YQK187RF107-YP225M4，YQK187RF107-YP250M4，YQK187RF107-YPB112M4，YQK187RF107-YPB132M4，YQK187RF107-YPB160M4，YQK187RF107-YPB180M4，YQK187RF107-YPB200L4，YQK187RF107-YPB225M4，YQK187RF107-YPB250M4，YQK187RF107-YPE112M4，YQK187RF107-YPE132M4，YQK187RF107-YPE160M4，YQK187RF107-YPE180M4，YQK187RF107-YPE200L4，YQK187RF107-YPE225M4，YQK187RF107-YPE250M4，YQK187RF107-YS112M4，YQK187RF107-YS132M4，YQK187RF107-YS160M4，YQK187RF107-YS180M4，YQK187RF107-YS200L4，YQK187RF107-YS225M4，YQK187RF107-YS250M4，YQK187RF107-YVB112M4，YQK187RF107-YVB132M4，YQK187RF107-YVB160M4，YQK187RF107-YVB180M4，YQK187RF107-YVB200L4，YQK187RF107-YVB225M4，YQK187RF107-YVB250M4，YQK187RF107-YVP112M4，YQK187RF107-YVP132M4，YQK187RF107-YVP160M4，YQK187RF107-YVP180M4，YQK187RF107-YVP200L4，YQK187RF107-YVP225M4，YQK187RF107-YVP250M4，YQK187RF107-YVPEJ112M4，YQK187RF107-YVPEJ132M4，YQK187RF107-YVPEJ160M4，YQK187RF107-YVPEJ180M4，YQK187RF107-YVPEJ200L4，YQK187RF107-YVPEJ225M4，YQK187RF107-YVPEJ250M4，SK187R107-Y112M4，SK187R107-Y132M4，SK187R107-Y160M4，SK187R107-Y180M4，SK187R107-Y200M4，SK187R107-Y225M4，SK187R107-Y250M4，SK187RF107-Y112M4，SK187RF107-Y11KW，SK187RF107-Y132M4，SK187RF107-Y15KW，SK187RF107-Y160M4，SK187RF107-Y18.5KW，SK187RF107-Y180M4，SK187RF107-Y200M4，SK187RF107-Y225M4，SK187RF107-Y22KW，SK187RF107-Y250M4，SK187RF107-Y30KW，SK187RF107-Y37KW，SK187RF107-Y45KW，SK187RF107-Y4KW，SK187RF107-Y5.5KW，SK187RF107-Y55KW，SK187RF107-Y7.5KW，SK187RF107-YB112M4，SK187RF107-YB132M4，SK187RF107-YB160M4，SK187RF107-YB180M4，SK187RF107-YB200L4，SK187RF107-YB225M4，SK187RF107-YB250M4，SK187RF107-YDP112M4，SK187RF107-YDP132M4，SK187RF107-YDP160M4，SK187RF107-YDP180M4，SK187RF107-YDP200L4，SK187RF107-YDP225M4，SK187RF107-YDP250M4，SK187RF107-YE112M4，SK187RF107-YE132M4，SK187RF107-YE160M4，SK187RF107-YE180M4，SK187RF107-YE200L4，SK187RF107-YE225M4，SK187RF107-YE250M4，SK187RF107-YEJ112M4，SK187RF107-YEJ132M4，SK187RF107-YEJ160M4，SK187RF107-YEJ180M4，SK187RF107-YEJ200L4，SK187RF107-YEJ225M4，SK187RF107-YEJ250M4，SK187RF107-YEJB112M4，SK187RF107-YEJB132M4，SK187RF107-YEJB160M4，SK187RF107-YEJB180M4，SK187RF107-YEJB200L4，SK187RF107-YEJB225M4，SK187RF107-YEJB250M4，SK187RF107-YP112M4，SK187RF107-YP132M4，SK187RF107-YP160M4，SK187RF107-YP180M4，SK187RF107-YP200L4，SK187RF107-YP225M4，SK187RF107-YP250M4，SK187RF107-YPB112M4，SK187RF107-YPB132M4，SK187RF107-YPB160M4，SK187RF107-YPB180M4，SK187RF107-YPB200L4，SK187RF107-YPB225M4，SK187RF107-YPB250M4，SK187RF107-YPE112M4，SK187RF107-YPE132M4，SK187RF107-YPE160M4，SK187RF107-YPE180M4，SK187RF107-YPE200L4，SK187RF107-YPE225M4，SK187RF107-YPE250M4，SK187RF107-YS112M4，SK187RF107-YS132M4，SK187RF107-YS160M4，SK187RF107-YS180M4，SK187RF107-YS200L4，SK187RF107-YS225M4，SK187RF107-YS250M4，SK187RF107-YVB112M4，SK187RF107-YVB132M4，SK187RF107-YVB160M4，SK187RF107-YVB180M4，SK187RF107-YVB200L4，SK187RF107-YVB225M4，SK187RF107-YVB250M4，SK187RF107-YVP112M4，SK187RF107-YVP132M4，SK187RF107-YVP160M4，SK187RF107-YVP180M4，SK187RF107-YVP200L4，SK187RF107-YVP225M4，SK187RF107-YVP250M4，SK187RF107-YVPEJ112M4，SK187RF107-YVPEJ132M4，SK187RF107-YVPEJ160M4，SK187RF107-YVPEJ180M4，SK187RF107-YVPEJ200L4，SK187RF107-YVPEJ225M4，SK187RF107-YVPEJ250M4，AK187R107-Y112M4，AK187R107-Y132M4，AK187R107-Y160M4，AK187R107-Y180M4，AK187R107-Y200M4，AK187R107-Y225M4，AK187R107-Y250M4，AK187RF107-Y112M4，AK187RF107-Y11KW，AK187RF107-Y132M4，AK187RF107-Y15KW，AK187RF107-Y160M4，AK187RF107-Y18.5KW，AK187RF107-Y180M4，AK187RF107-Y200M4，AK187RF107-Y225M4，AK187RF107-Y22KW，AK187RF107-Y250M4，AK187RF107-Y30KW，AK187RF107-Y37KW，AK187RF107-Y45KW，AK187RF107-Y4KW，AK187RF107-Y5.5KW，AK187RF107-Y55KW，AK187RF107-Y7.5KW，AK187RF107-YB112M4，AK187RF107-YB132M4，AK187RF107-YB160M4，AK187RF107-YB180M4，AK187RF107-YB200L4，AK187RF107-YB225M4，AK187RF107-YB250M4，AK187RF107-YDP112M4，AK187RF107-YDP132M4，AK187RF107-YDP160M4，AK187RF107-YDP180M4，AK187RF107-YDP200L4，AK187RF107-YDP225M4，AK187RF107-YDP250M4，AK187RF107-YE112M4，AK187RF107-YE132M4，AK187RF107-YE160M4，AK187RF107-YE180M4，AK187RF107-YE200L4，AK187RF107-YE225M4，AK187RF107-YE250M4，AK187RF107-YEJ112M4，AK187RF107-YEJ132M4，AK187RF107-YEJ160M4，AK187RF107-YEJ180M4，AK187RF107-YEJ200L4，AK187RF107-YEJ225M4，AK187RF107-YEJ250M4，AK187RF107-YEJB112M4，AK187RF107-YEJB132M4，AK187RF107-YEJB160M4，AK187RF107-YEJB180M4，AK187RF107-YEJB200L4，AK187RF107-YEJB225M4，AK187RF107-YEJB250M4，AK187RF107-YP112M4，AK187RF107-YP132M4，AK187RF107-YP160M4，AK187RF107-YP180M4，AK187RF107-YP200L4，AK187RF107-YP225M4，AK187RF107-YP250M4，AK187RF107-YPB112M4，AK187RF107-YPB132M4，AK187RF107-YPB160M4，AK187RF107-YPB180M4，AK187RF107-YPB200L4，AK187RF107-YPB225M4，AK187RF107-YPB250M4，AK187RF107-YPE112M4，AK187RF107-YPE132M4，AK187RF107-YPE160M4，AK187RF107-YPE180M4，AK187RF107-YPE200L4，AK187RF107-YPE225M4，AK187RF107-YPE250M4，AK187RF107-YS112M4，AK187RF107-YS132M4，AK187RF107-YS160M4，AK187RF107-YS180M4，AK187RF107-YS200L4，AK187RF107-YS225M4，AK187RF107-YS250M4，AK187RF107-YVB112M4，AK187RF107-YVB132M4，AK187RF107-YVB160M4，AK187RF107-YVB180M4，AK187RF107-YVB200L4，AK187RF107-YVB225M4，AK187RF107-YVB250M4，AK187RF107-YVP112M4，AK187RF107-YVP132M4，AK187RF107-YVP160M4，AK187RF107-YVP180M4，AK187RF107-YVP200L4，AK187RF107-YVP225M4，AK187RF107-YVP250M4，AK187RF107-YVPEJ112M4，AK187RF107-YVPEJ132M4，AK187RF107-YVPEJ160M4，AK187RF107-YVPEJ180M4，AK187RF107-YVPEJ200L4，AK187RF107-YVPEJ225M4，AK187RF107-YVPEJ250M4，WK187R107-Y112M4，WK187R107-Y132M4，WK187R107-Y160M4，WK187R107-Y180M4，WK187R107-Y200M4，WK187R107-Y225M4，WK187R107-Y250M4，WK187RF107-Y112M4，WK187RF107-Y11KW，WK187RF107-Y132M4，WK187RF107-Y15KW，WK187RF107-Y160M4，WK187RF107-Y18.5KW，WK187RF107-Y180M4，WK187RF107-Y200M4，WK187RF107-Y225M4，WK187RF107-Y22KW，WK187RF107-Y250M4，WK187RF107-Y30KW，WK187RF107-Y37KW，WK187RF107-Y45KW，WK187RF107-Y4KW，WK187RF107-Y5.5KW，WK187RF107-Y55KW，WK187RF107-Y7.5KW，WK187RF107-YB112M4，WK187RF107-YB132M4，WK187RF107-YB160M4，WK187RF107-YB180M4，WK187RF107-YB200L4，WK187RF107-YB225M4，WK187RF107-YB250M4，WK187RF107-YDP112M4，WK187RF107-YDP132M4，WK187RF107-YDP160M4，WK187RF107-YDP180M4，WK187RF107-YDP200L4，WK187RF107-YDP225M4，WK187RF107-YDP250M4，WK187RF107-YE112M4，WK187RF107-YE132M4，WK187RF107-YE160M4，WK187RF107-YE180M4，WK187RF107-YE200L4，WK187RF107-YE225M4，WK187RF107-YE250M4，WK187RF107-YEJ112M4，WK187RF107-YEJ132M4，WK187RF107-YEJ160M4，WK187RF107-YEJ180M4，WK187RF107-YEJ200L4，WK187RF107-YEJ225M4，WK187RF107-YEJ250M4，WK187RF107-YEJB112M4，WK187RF107-YEJB132M4，WK187RF107-YEJB160M4，WK187RF107-YEJB180M4，WK187RF107-YEJB200L4，WK187RF107-YEJB225M4，WK187RF107-YEJB250M4，WK187RF107-YP112M4，WK187RF107-YP132M4，WK187RF107-YP160M4，WK187RF107-YP180M4，WK187RF107-YP200L4，WK187RF107-YP225M4，WK187RF107-YP250M4，WK187RF107-YPB112M4，WK187RF107-YPB132M4，WK187RF107-YPB160M4，WK187RF107-YPB180M4，WK187RF107-YPB200L4，WK187RF107-YPB225M4，WK187RF107-YPB250M4，WK187RF107-YPE112M4，WK187RF107-YPE132M4，WK187RF107-YPE160M4，WK187RF107-YPE180M4，WK187RF107-YPE200L4，WK187RF107-YPE225M4，WK187RF107-YPE250M4，WK187RF107-YS112M4，WK187RF107-YS132M4，WK187RF107-YS160M4，WK187RF107-YS180M4，WK187RF107-YS200L4，WK187RF107-YS225M4，WK187RF107-YS250M4，WK187RF107-YVB112M4，WK187RF107-YVB132M4，WK187RF107-YVB160M4，WK187RF107-YVB180M4，WK187RF107-YVB200L4，WK187RF107-YVB225M4，WK187RF107-YVB250M4，WK187RF107-YVP112M4，WK187RF107-YVP132M4，WK187RF107-YVP160M4，WK187RF107-YVP180M4，WK187RF107-YVP200L4，WK187RF107-YVP225M4，WK187RF107-YVP250M4，WK187RF107-YVPEJ112M4，WK187RF107-YVPEJ132M4，WK187RF107-YVPEJ160M4，WK187RF107-YVPEJ180M4，WK187RF107-YVPEJ200L4，WK187RF107-YVPEJ225M4，WK187RF107-YVPEJ250M4，XDK187R107-Y112M4，XDK187R107-Y132M4，XDK187R107-Y160M4，XDK187R107-Y180M4，XDK187R107-Y200M4，XDK187R107-Y225M4，XDK187R107-Y250M4，XDK187RF107-Y112M4，XDK187RF107-Y11KW，XDK187RF107-Y132M4，XDK187RF107-Y15KW，XDK187RF107-Y160M4，XDK187RF107-Y18.5KW，XDK187RF107-Y180M4，XDK187RF107-Y200M4，XDK187RF107-Y225M4，XDK187RF107-Y22KW，XDK187RF107-Y250M4，XDK187RF107-Y30KW，XDK187RF107-Y37KW，XDK187RF107-Y45KW，XDK187RF107-Y4KW，XDK187RF107-Y5.5KW，XDK187RF107-Y55KW，XDK187RF107-Y7.5KW，XDK187RF107-YB112M4，XDK187RF107-YB132M4，XDK187RF107-YB160M4，XDK187RF107-YB180M4，XDK187RF107-YB200L4，XDK187RF107-YB225M4，XDK187RF107-YB250M4，XDK187RF107-YDP112M4，XDK187RF107-YDP132M4，XDK187RF107-YDP160M4，XDK187RF107-YDP180M4，XDK187RF107-YDP200L4，XDK187RF107-YDP225M4，XDK187RF107-YDP250M4，XDK187RF107-YE112M4，XDK187RF107-YE132M4，XDK187RF107-YE160M4，XDK187RF107-YE180M4，XDK187RF107-YE200L4，XDK187RF107-YE225M4，XDK187RF107-YE250M4，XDK187RF107-YEJ112M4，XDK187RF107-YEJ132M4，XDK187RF107-YEJ160M4，XDK187RF107-YEJ180M4，XDK187RF107-YEJ200L4，XDK187RF107-YEJ225M4，XDK187RF107-YEJ250M4，XDK187RF107-YEJB112M4，XDK187RF107-YEJB132M4，XDK187RF107-YEJB160M4，XDK187RF107-YEJB180M4，XDK187RF107-YEJB200L4，XDK187RF107-YEJB225M4，XDK187RF107-YEJB250M4，XDK187RF107-YP112M4，XDK187RF107-YP132M4，XDK187RF107-YP160M4，XDK187RF107-YP180M4，XDK187RF107-YP200L4，XDK187RF107-YP225M4，XDK187RF107-YP250M4，XDK187RF107-YPB112M4，XDK187RF107-YPB132M4，XDK187RF107-YPB160M4，XDK187RF107-YPB180M4，XDK187RF107-YPB200L4，XDK187RF107-YPB225M4，XDK187RF107-YPB250M4，XDK187RF107-YPE112M4，XDK187RF107-YPE132M4，XDK187RF107-YPE160M4，XDK187RF107-YPE180M4，XDK187RF107-YPE200L4，XDK187RF107-YPE225M4，XDK187RF107-YPE250M4，XDK187RF107-YS112M4，XDK187RF107-YS132M4，XDK187RF107-YS160M4，XDK187RF107-YS180M4，XDK187RF107-YS200L4，XDK187RF107-YS225M4，XDK187RF107-YS250M4，XDK187RF107-YVB112M4，XDK187RF107-YVB132M4，XDK187RF107-YVB160M4，XDK187RF107-YVB180M4，XDK187RF107-YVB200L4，XDK187RF107-YVB225M4，XDK187RF107-YVB250M4，XDK187RF107-YVP112M4，XDK187RF107-YVP132M4，XDK187RF107-YVP160M4，XDK187RF107-YVP180M4，XDK187RF107-YVP200L4，XDK187RF107-YVP225M4，XDK187RF107-YVP250M4，XDK187RF107-YVPEJ112M4，XDK187RF107-YVPEJ132M4，XDK187RF107-YVPEJ160M4，XDK187RF107-YVPEJ180M4，XDK187RF107-YVPEJ200L4，XDK187RF107-YVPEJ225M4，XDK187RF107-YVPEJ250M4，NK187R107-Y112M4，NK187R107-Y132M4，NK187R107-Y160M4，NK187R107-Y180M4，NK187R107-Y200M4，NK187R107-Y225M4，NK187R107-Y250M4，NK187RF107-Y112M4，NK187RF107-Y11KW，NK187RF107-Y132M4，NK187RF107-Y15KW，NK187RF107-Y160M4，NK187RF107-Y18.5KW，NK187RF107-Y180M4，NK187RF107-Y200M4，NK187RF107-Y225M4，NK187RF107-Y22KW，NK187RF107-Y250M4，NK187RF107-Y30KW，NK187RF107-Y37KW，NK187RF107-Y45KW，NK187RF107-Y4KW，NK187RF107-Y5.5KW，NK187RF107-Y55KW，NK187RF107-Y7.5KW，NK187RF107-YB112M4，NK187RF107-YB132M4，NK187RF107-YB160M4，NK187RF107-YB180M4，NK187RF107-YB200L4，NK187RF107-YB225M4，NK187RF107-YB250M4，NK187RF107-YDP112M4，NK187RF107-YDP132M4，NK187RF107-YDP160M4，NK187RF107-YDP180M4，NK187RF107-YDP200L4，NK187RF107-YDP225M4，NK187RF107-YDP250M4，NK187RF107-YE112M4，NK187RF107-YE132M4，NK187RF107-YE160M4，NK187RF107-YE180M4，NK187RF107-YE200L4，NK187RF107-YE225M4，NK187RF107-YE250M4，NK187RF107-YEJ112M4，NK187RF107-YEJ132M4，NK187RF107-YEJ160M4，NK187RF107-YEJ180M4，NK187RF107-YEJ200L4，NK187RF107-YEJ225M4，NK187RF107-YEJ250M4，NK187RF107-YEJB112M4，NK187RF107-YEJB132M4，NK187RF107-YEJB160M4，NK187RF107-YEJB180M4，NK187RF107-YEJB200L4，NK187RF107-YEJB225M4，NK187RF107-YEJB250M4，NK187RF107-YP112M4，NK187RF107-YP132M4，NK187RF107-YP160M4，NK187RF107-YP180M4，NK187RF107-YP200L4，NK187RF107-YP225M4，NK187RF107-YP250M4，NK187RF107-YPB112M4，NK187RF107-YPB132M4，NK187RF107-YPB160M4，NK187RF107-YPB180M4，NK187RF107-YPB200L4，NK187RF107-YPB225M4，NK187RF107-YPB250M4，NK187RF107-YPE112M4，NK187RF107-YPE132M4，NK187RF107-YPE160M4，NK187RF107-YPE180M4，NK187RF107-YPE200L4，NK187RF107-YPE225M4，NK187RF107-YPE250M4，NK187RF107-YS112M4，NK187RF107-YS132M4，NK187RF107-YS160M4，NK187RF107-YS180M4，NK187RF107-YS200L4，NK187RF107-YS225M4，NK187RF107-YS250M4，NK187RF107-YVB112M4，NK187RF107-YVB132M4，NK187RF107-YVB160M4，NK187RF107-YVB180M4，NK187RF107-YVB200L4，NK187RF107-YVB225M4，NK187RF107-YVB250M4，NK187RF107-YVP112M4，NK187RF107-YVP132M4，NK187RF107-YVP160M4，NK187RF107-YVP180M4，NK187RF107-YVP200L4，NK187RF107-YVP225M4，NK187RF107-YVP250M4，NK187RF107-YVPEJ112M4，NK187RF107-YVPEJ132M4，NK187RF107-YVPEJ160M4，NK187RF107-YVPEJ180M4，NK187RF107-YVPEJ200L4，NK187RF107-YVPEJ225M4，NK187RF107-YVPEJ250M4，JCK187R107-Y112M4，JCK187R107-Y132M4，JCK187R107-Y160M4，JCK187R107-Y180M4，JCK187R107-Y200M4，JCK187R107-Y225M4，JCK187R107-Y250M4，JCK187RF107-Y112M4，JCK187RF107-Y11KW，JCK187RF107-Y132M4，JCK187RF107-Y15KW，JCK187RF107-Y160M4，JCK187RF107-Y18.5KW，JCK187RF107-Y180M4，JCK187RF107-Y200M4，JCK187RF107-Y225M4，JCK187RF107-Y22KW，JCK187RF107-Y250M4，JCK187RF107-Y30KW，JCK187RF107-Y37KW，JCK187RF107-Y45KW，JCK187RF107-Y4KW，JCK187RF107-Y5.5KW，JCK187RF107-Y55KW，JCK187RF107-Y7.5KW，JCK187RF107-YB112M4，JCK187RF107-YB132M4，JCK187RF107-YB160M4，JCK187RF107-YB180M4，JCK187RF107-YB200L4，JCK187RF107-YB225M4，JCK187RF107-YB250M4，JCK187RF107-YDP112M4，JCK187RF107-YDP132M4，JCK187RF107-YDP160M4，JCK187RF107-YDP180M4，JCK187RF107-YDP200L4，JCK187RF107-YDP225M4，JCK187RF107-YDP250M4，JCK187RF107-YE112M4，JCK187RF107-YE132M4，JCK187RF107-YE160M4，JCK187RF107-YE180M4，JCK187RF107-YE200L4，JCK187RF107-YE225M4，JCK187RF107-YE250M4，JCK187RF107-YEJ112M4，JCK187RF107-YEJ132M4，JCK187RF107-YEJ160M4，JCK187RF107-YEJ180M4，JCK187RF107-YEJ200L4，JCK187RF107-YEJ225M4，JCK187RF107-YEJ250M4，JCK187RF107-YEJB112M4，JCK187RF107-YEJB132M4，JCK187RF107-YEJB160M4，JCK187RF107-YEJB180M4，JCK187RF107-YEJB200L4，JCK187RF107-YEJB225M4，JCK187RF107-YEJB250M4，JCK187RF107-YP112M4，JCK187RF107-YP132M4，JCK187RF107-YP160M4，JCK187RF107-YP180M4，JCK187RF107-YP200L4，JCK187RF107-YP225M4，JCK187RF107-YP250M4，JCK187RF107-YPB112M4，JCK187RF107-YPB132M4，JCK187RF107-YPB160M4，JCK187RF107-YPB180M4，JCK187RF107-YPB200L4，JCK187RF107-YPB225M4，JCK187RF107-YPB250M4，JCK187RF107-YPE112M4，JCK187RF107-YPE132M4，JCK187RF107-YPE160M4，JCK187RF107-YPE180M4，JCK187RF107-YPE200L4，JCK187RF107-YPE225M4，JCK187RF107-YPE250M4，JCK187RF107-YS112M4，JCK187RF107-YS132M4，JCK187RF107-YS160M4，JCK187RF107-YS180M4，JCK187RF107-YS200L4，JCK187RF107-YS225M4，JCK187RF107-YS250M4，JCK187RF107-YVB112M4，JCK187RF107-YVB132M4，JCK187RF107-YVB160M4，JCK187RF107-YVB180M4，JCK187RF107-YVB200L4，JCK187RF107-YVB225M4，JCK187RF107-YVB250M4，JCK187RF107-YVP112M4，JCK187RF107-YVP132M4，JCK187RF107-YVP160M4，JCK187RF107-YVP180M4，JCK187RF107-YVP200L4，JCK187RF107-YVP225M4，JCK187RF107-YVP250M4，JCK187RF107-YVPEJ112M4，JCK187RF107-YVPEJ132M4，JCK187RF107-YVPEJ160M4，JCK187RF107-YVPEJ180M4，JCK187RF107-YVPEJ200L4，JCK187RF107-YVPEJ225M4，JCK187RF107-YVPEJ250M4，KW187RW107-Y112M4，KW187RW107-Y132M4，KW187RW107-Y160M4，KW187RW107-Y180M4，KW187RW107-Y200M4，KW187RW107-Y225M4，KW187RW107-Y250M4，KW187RWF107-Y112M4，KW187RWF107-Y11KW，KW187RWF107-Y132M4，KW187RWF107-Y15KW，KW187RWF107-Y160M4，KW187RWF107-Y18.5KW，KW187RWF107-Y180M4，KW187RWF107-Y200M4，KW187RWF107-Y225M4，KW187RWF107-Y22KW，KW187RWF107-Y250M4，KW187RWF107-Y30KW，KW187RWF107-Y37KW，KW187RWF107-Y45KW，KW187RWF107-Y4KW，KW187RWF107-Y5.5KW，KW187RWF107-Y55KW，KW187RWF107-Y7.5KW，KW187RWF107-YB112M4，KW187RWF107-YB132M4，KW187RWF107-YB160M4，KW187RWF107-YB180M4，KW187RWF107-YB200L4，KW187RWF107-YB225M4，KW187RWF107-YB250M4，KW187RWF107-YDP112M4，KW187RWF107-YDP132M4，KW187RWF107-YDP160M4，KW187RWF107-YDP180M4，KW187RWF107-YDP200L4，KW187RWF107-YDP225M4，KW187RWF107-YDP250M4，KW187RWF107-YE112M4，KW187RWF107-YE132M4，KW187RWF107-YE160M4，KW187RWF107-YE180M4，KW187RWF107-YE200L4，KW187RWF107-YE225M4，KW187RWF107-YE250M4，KW187RWF107-YEJ112M4，KW187RWF107-YEJ132M4，KW187RWF107-YEJ160M4，KW187RWF107-YEJ180M4，KW187RWF107-YEJ200L4，KW187RWF107-YEJ225M4，KW187RWF107-YEJ250M4，KW187RWF107-YEJB112M4，KW187RWF107-YEJB132M4，KW187RWF107-YEJB160M4，KW187RWF107-YEJB180M4，KW187RWF107-YEJB200L4，KW187RWF107-YEJB225M4，KW187RWF107-YEJB250M4，KW187RWF107-YP112M4，KW187RWF107-YP132M4，KW187RWF107-YP160M4，KW187RWF107-YP180M4，KW187RWF107-YP200L4，KW187RWF107-YP225M4，KW187RWF107-YP250M4，KW187RWF107-YPB112M4，KW187RWF107-YPB132M4，KW187RWF107-YPB160M4，KW187RWF107-YPB180M4，KW187RWF107-YPB200L4，KW187RWF107-YPB225M4，KW187RWF107-YPB250M4，KW187RWF107-YPE112M4，KW187RWF107-YPE132M4，KW187RWF107-YPE160M4，KW187RWF107-YPE180M4，KW187RWF107-YPE200L4，KW187RWF107-YPE225M4，KW187RWF107-YPE250M4，KW187RWF107-YS112M4，KW187RWF107-YS132M4，KW187RWF107-YS160M4，KW187RWF107-YS180M4，KW187RWF107-YS200L4，KW187RWF107-YS225M4，KW187RWF107-YS250M4，KW187RWF107-YVB112M4，KW187RWF107-YVB132M4，KW187RWF107-YVB160M4，KW187RWF107-YVB180M4，KW187RWF107-YVB200L4，KW187RWF107-YVB225M4，KW187RWF107-YVB250M4，KW187RWF107-YVP112M4，KW187RWF107-YVP132M4，KW187RWF107-YVP160M4，KW187RWF107-YVP180M4，KW187RWF107-YVP200L4，KW187RWF107-YVP225M4，KW187RWF107-YVP250M4，KW187RWF107-YVPEJ112M4，KW187RWF107-YVPEJ132M4，KW187RWF107-YVPEJ160M4，KW187RWF107-YVPEJ180M4，KW187RWF107-YVPEJ200L4，KW187RWF107-YVPEJ225M4，KW187RWF107-YVPEJ250M4，K189R109-Y112M4，K189R109-Y132M4，K189R109-Y160M4，K189R109-Y180M4，K189R109-Y200M4，K189R109-Y225M4，K189R109-Y250M4，K189RF109-Y112M4，K189RF109-Y11KW，K189RF109-Y132M4，K189RF109-Y15KW，K189RF109-Y160M4，K189RF109-Y18.5KW，K189RF109-Y180M4，K189RF109-Y200M4，K189RF109-Y225M4，K189RF109-Y22KW，K189RF109-Y250M4，K189RF109-Y30KW，K189RF109-Y37KW，K189RF109-Y45KW，K189RF109-Y4KW，K189RF109-Y5.5KW，K189RF109-Y55KW，K189RF109-Y7.5KW，K189RF109-YB112M4，K189RF109-YB132M4，K189RF109-YB160M4，K189RF109-YB180M4，K189RF109-YB200L4，K189RF109-YB225M4，K189RF109-YB250M4，K189RF109-YDP112M4，K189RF109-YDP132M4，K189RF109-YDP160M4，K189RF109-YDP180M4，K189RF109-YDP200L4，K189RF109-YDP225M4，K189RF109-YDP250M4，K189RF109-YE112M4，K189RF109-YE132M4，K189RF109-YE160M4，K189RF109-YE180M4，K189RF109-YE200L4，K189RF109-YE225M4，K189RF109-YE250M4，K189RF109-YEJ112M4，K189RF109-YEJ132M4，K189RF109-YEJ160M4，K189RF109-YEJ180M4，K189RF109-YEJ200L4，K189RF109-YEJ225M4，K189RF109-YEJ250M4，K189RF109-YEJB112M4，K189RF109-YEJB132M4，K189RF109-YEJB160M4，K189RF109-YEJB180M4，K189RF109-YEJB200L4，K189RF109-YEJB225M4，K189RF109-YEJB250M4，K189RF109-YP112M4，K189RF109-YP132M4，K189RF109-YP160M4，K189RF109-YP180M4，K189RF109-YP200L4，K189RF109-YP225M4，K189RF109-YP250M4，K189RF109-YPB112M4，K189RF109-YPB132M4，K189RF109-YPB160M4，K189RF109-YPB180M4，K189RF109-YPB200L4，K189RF109-YPB225M4，K189RF109-YPB250M4，K189RF109-YPE112M4，K189RF109-YPE132M4，K189RF109-YPE160M4，K189RF109-YPE180M4，K189RF109-YPE200L4，K189RF109-YPE225M4，K189RF109-YPE250M4，K189RF109-YS112M4，K189RF109-YS132M4，K189RF109-YS160M4，K189RF109-YS180M4，K189RF109-YS200L4，K189RF109-YS225M4，K189RF109-YS250M4，K189RF109-YVB112M4，K189RF109-YVB132M4，K189RF109-YVB160M4，K189RF109-YVB180M4，K189RF109-YVB200L4，K189RF109-YVB225M4，K189RF109-YVB250M4，K189RF109-YVP112M4，K189RF109-YVP132M4，K189RF109-YVP160M4，K189RF109-YVP180M4，K189RF109-YVP200L4，K189RF109-YVP225M4，K189RF109-YVP250M4，K189RF109-YVPEJ112M4，K189RF109-YVPEJ132M4，K189RF109-YVPEJ160M4，K189RF109-YVPEJ180M4，K189RF109-YVPEJ200L4，K189RF109-YVPEJ225M4，K189RF109-YVPEJ250M4。

K189R109減速電機生產廠家：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.jinmiba.com/product/list-kxiliejiansuji-cn.html

推薦型號：K189減速機
